RADIUM CCV CATCH CAN KIT - HONDA CIVIC TYPE-R FK8 17+
Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. This kit mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

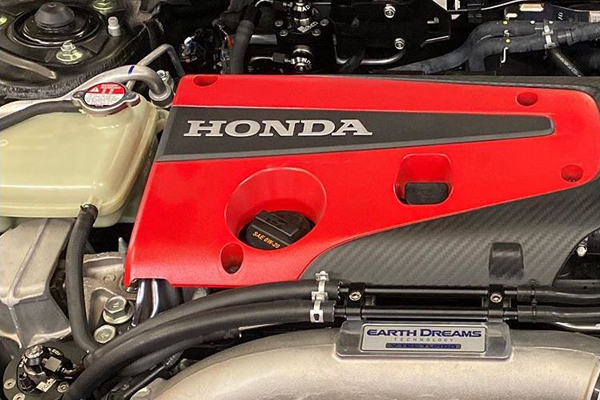

The 20-0425 Catch Can Kit, CCV, Civic Type-R fits under the OEM engine cover with no modifications required.

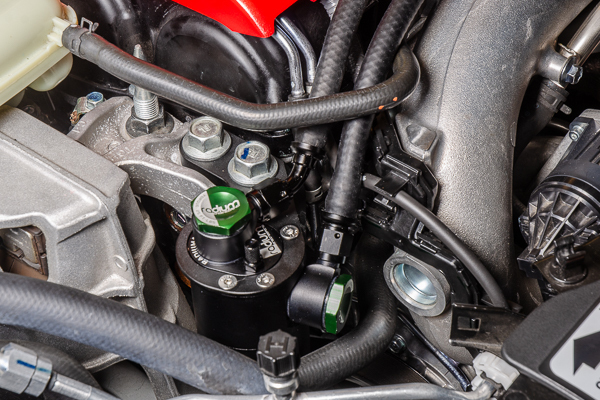

The catch can secures to the RH motor mount (shown above). If an aftermarket motor mount is used, minor modifications may be required. This catch can runs inline with the crankcase vent port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this line will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.
The crankcase vent lines are routed over the engine and billet clamped to the turbo inlet pipe using temperature resistant metal tubes.

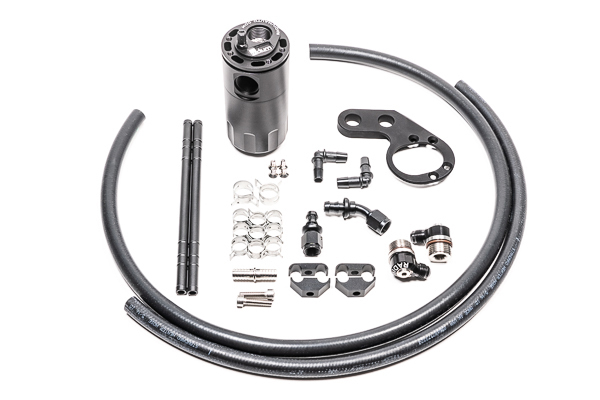

Each kit features the following:
- Anodized oil catch can with integrated condenser and dipstick
- Anodized aluminum Honda FK8 specific mounting bracket
- Anodized aluminum -AN adapter fittings and hose ends
- Enough PCV hose for custom applications
- Stainless steel mounting hardware
OPTIONAL (Sold Separately)
Petcock Drain Kit
- 4AN ORB to barb fitting
- Nylon 1/4" barb ball valve
- PCV Compliant Rubber Hose
This kit can be used to remotely drain the catch cans without the need to unscrew the canister body.
