- SUS347 Stainless Steel Investment Cast
- 33mm ID runners
- Retains the OEM heat shield (1" Raised) and hardware
- Equal length design
- Direct replacement for factory turbo manifold
AU $1,250.00 GST incl
*A $6 monthly account fee applies
(only payable if a balance is owing) See full Ts & Cs

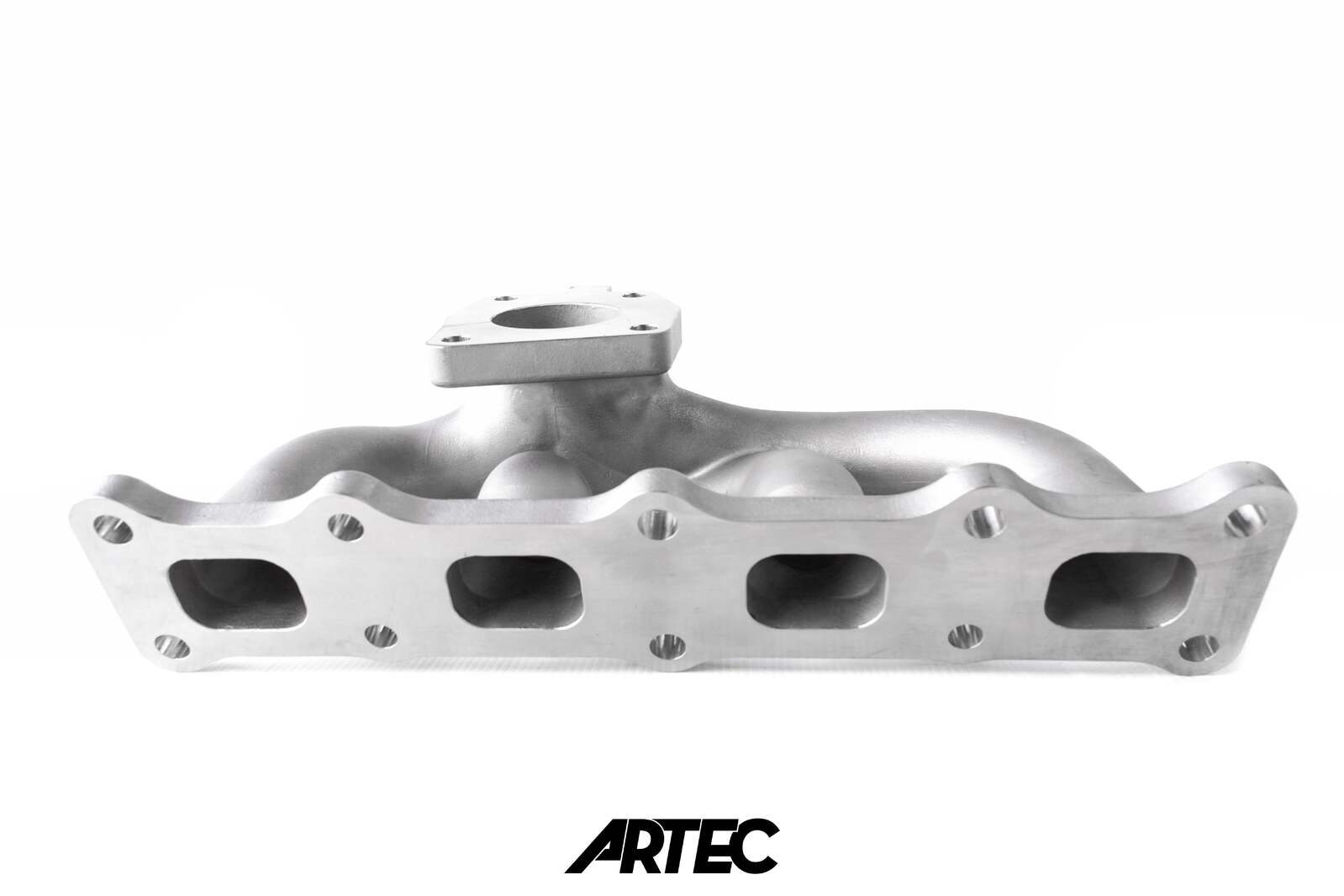

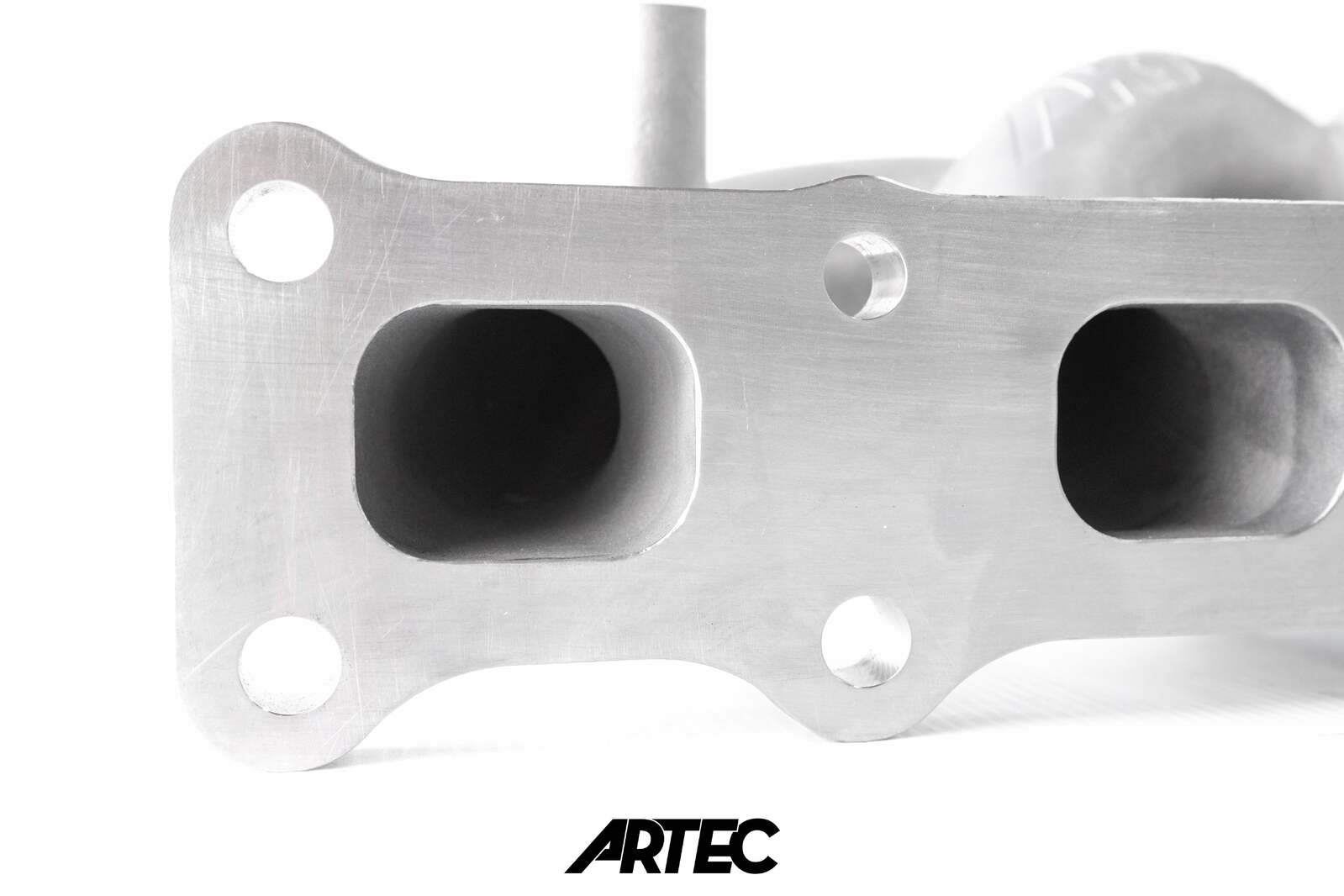

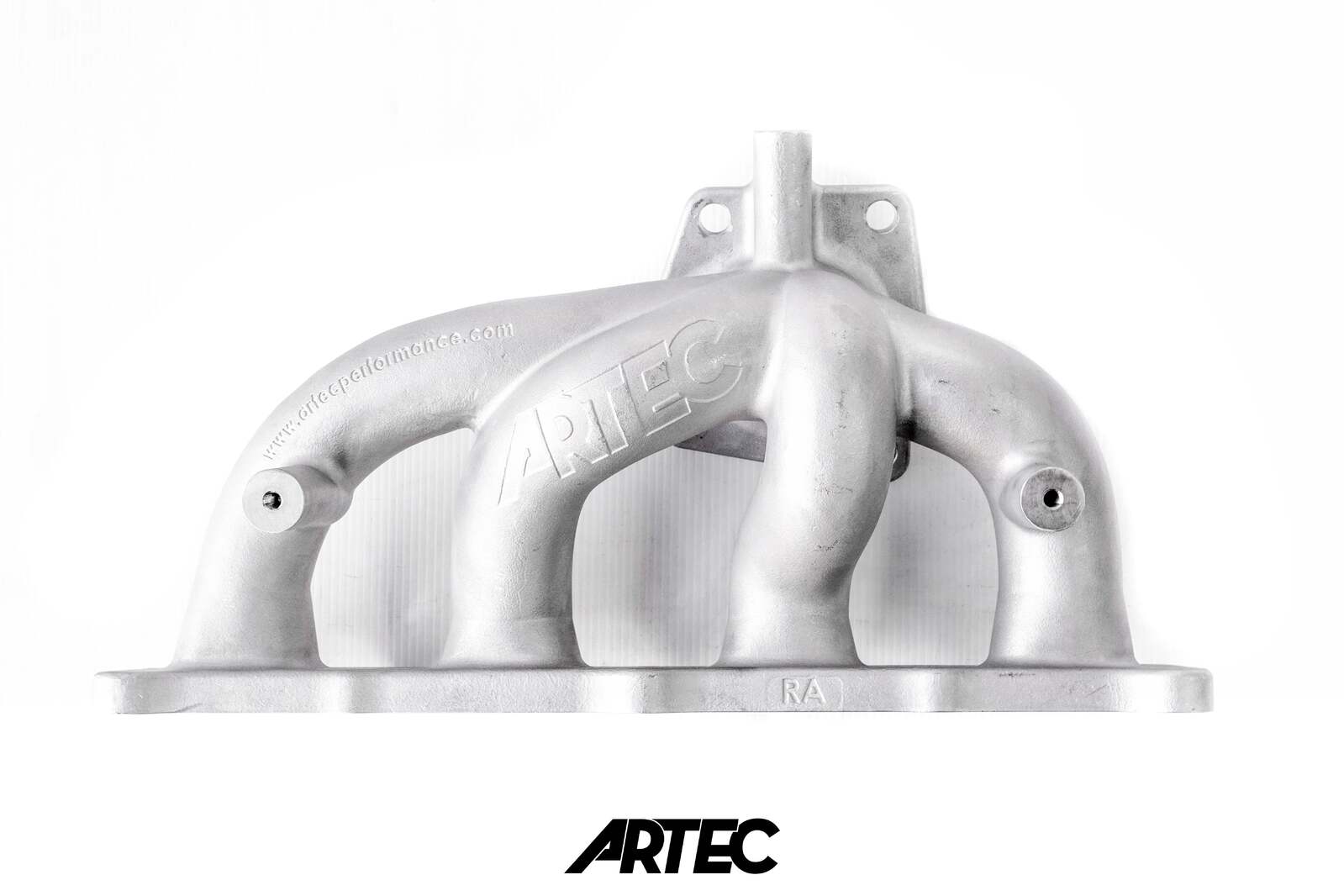

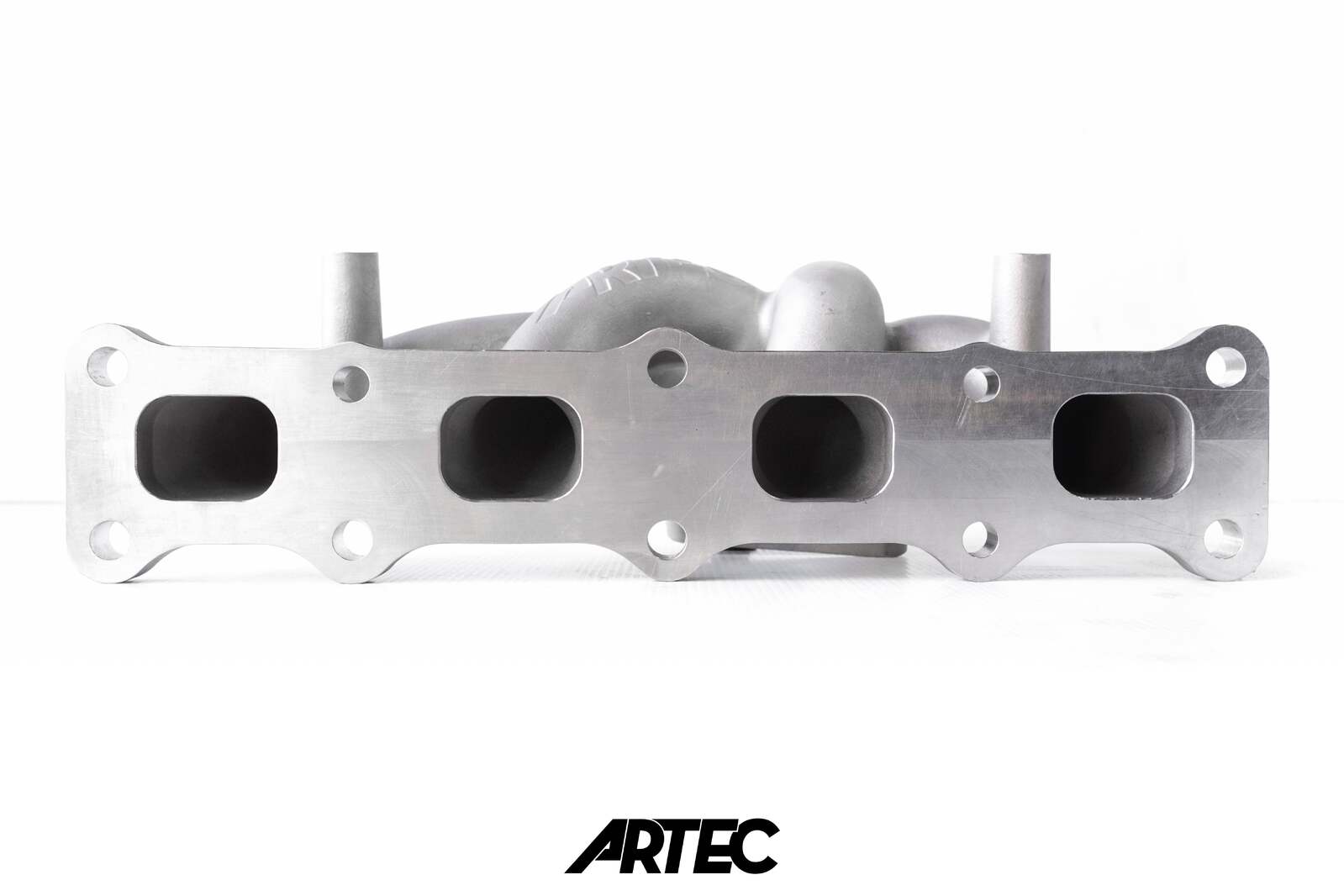

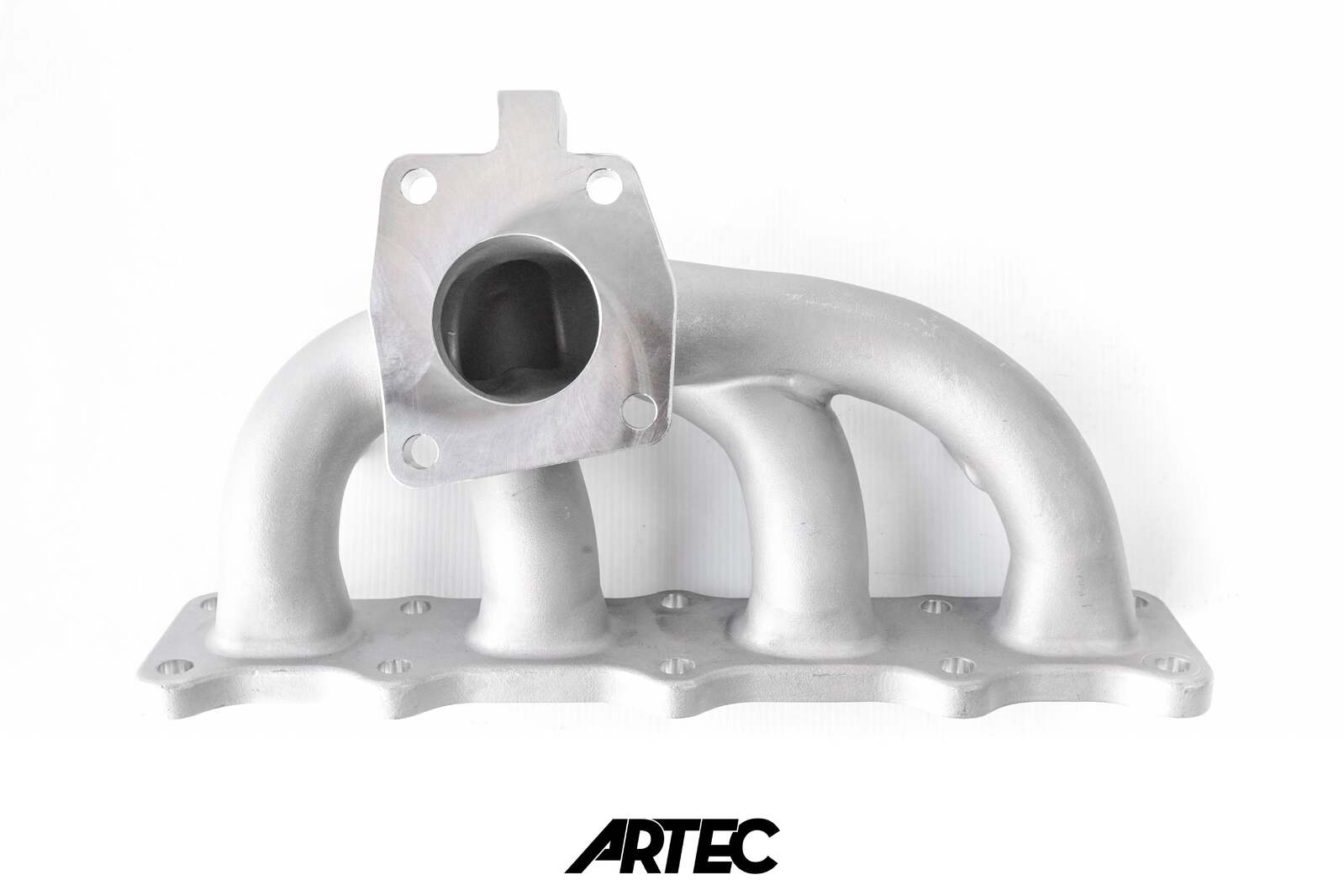

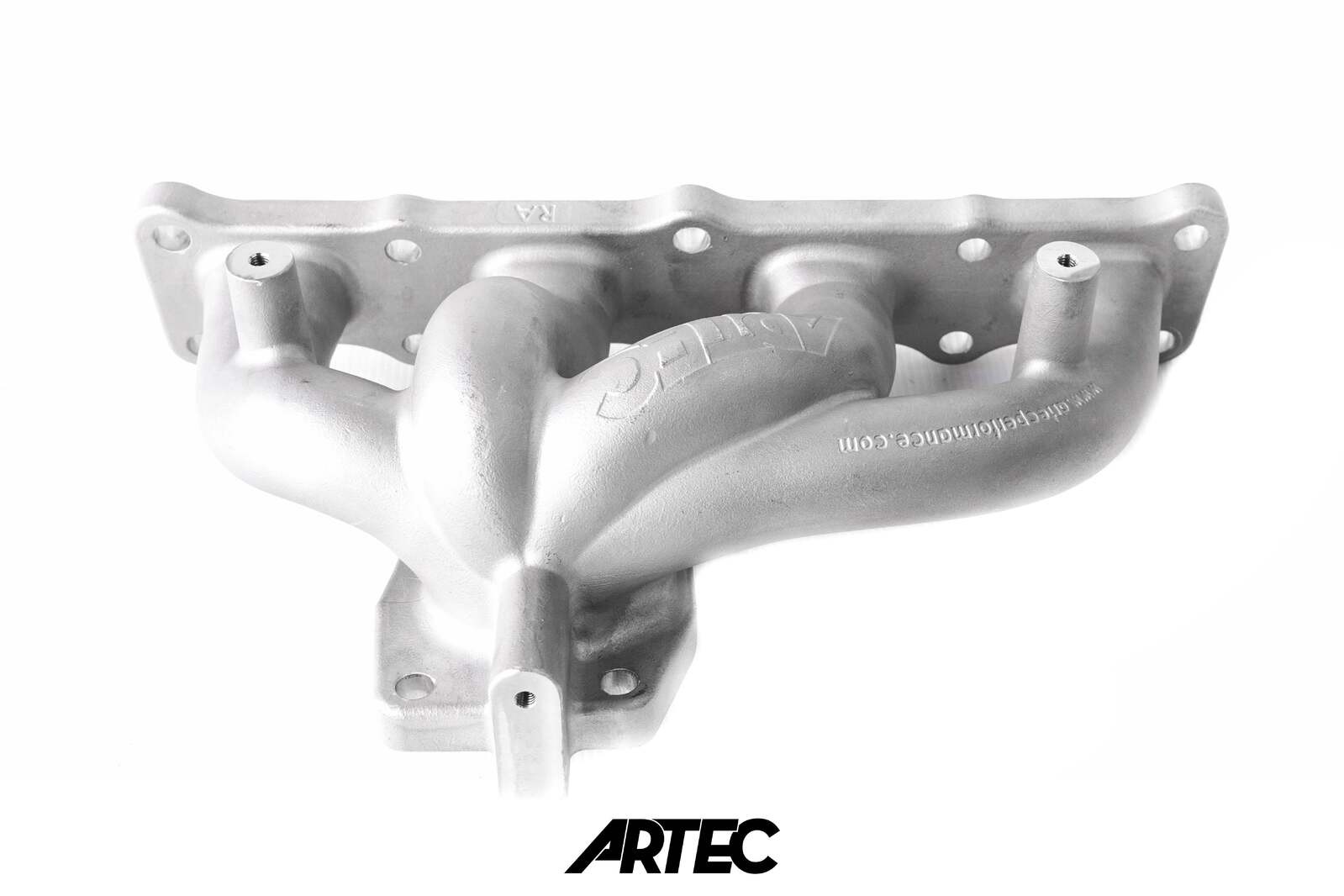

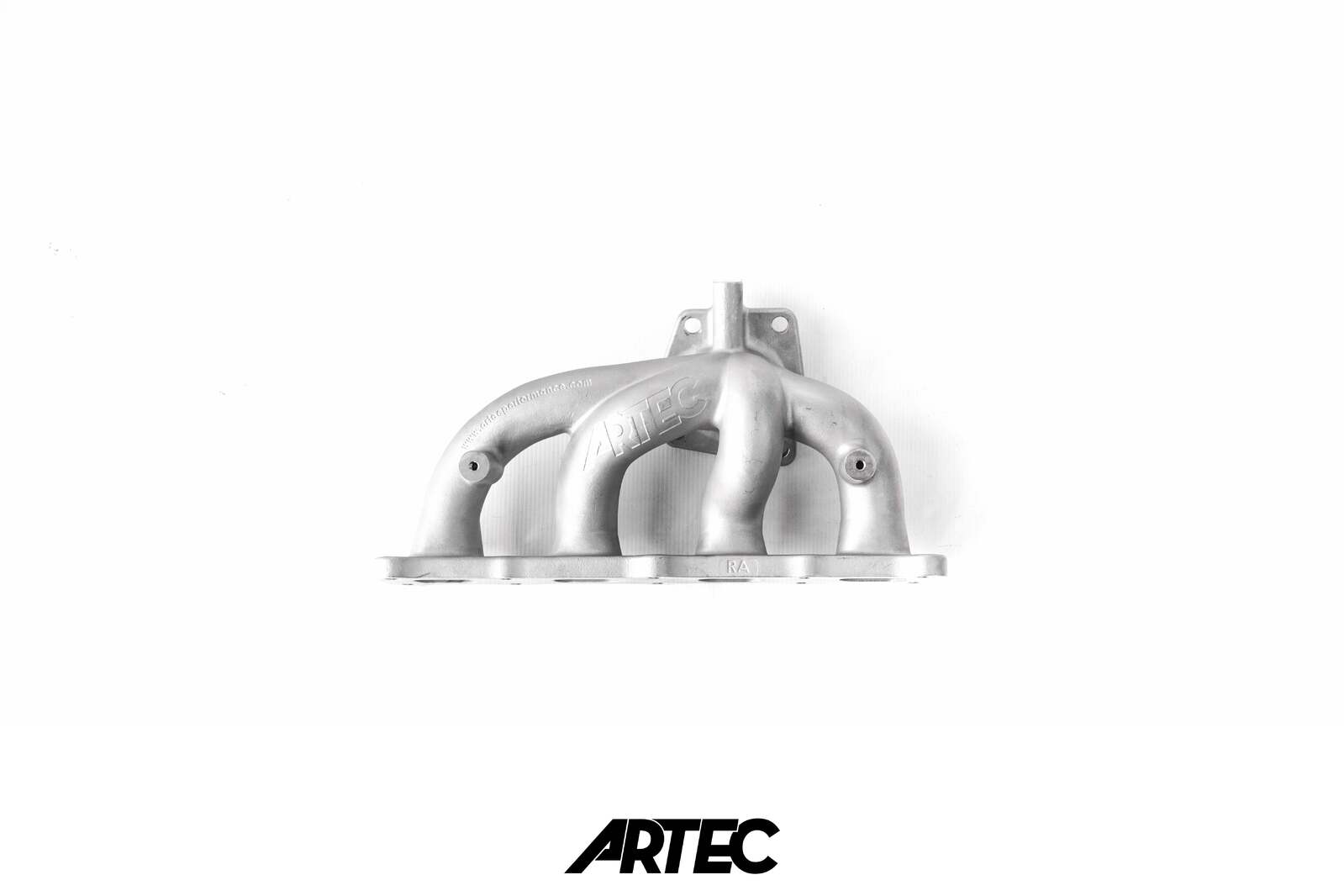

Artec direct replacement cast stainless steel turbo exhaust manifold for the Mitsubishi Lancer Ralliart 2009-2015.
The biggest flaw on the factory manifold is only 3 runners reaching the collector even though it's a 4 cylinder. 2 runners were merging just before the tight radius in the turbo flange area. The cracks were appearing along where the y runner met the other 2 runners.
This is because twice the hot air flows in the same diameter pipe, resulting in the runner with a much greater hot spot which causes it to expand more. So where it was cracking is where the metal is moving the greatest amount.
So when ARTEC was designing this manifold, they removed the particular hot spot by removing the restriction and/or bottleneck caused by the tight radius۪ to increase flow.
Made from 347 Stainless Steel, the runners have an inner diameter of 33mm, combined with the longer radius keeps response up by reducing manifold volume, but also keeps the flow up.
At ARTEC we have revolutionised the turbo manifold industry with our industry-leading SUS347 stainless steel investment cast manifolds.
All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.
The result is a truly optimised manifold with consistent performance, resistance to heat pooling and cracking, plus a beautiful smooth exterior finish.
Designed and tested in Australia, backed with a lifetime warranty.
