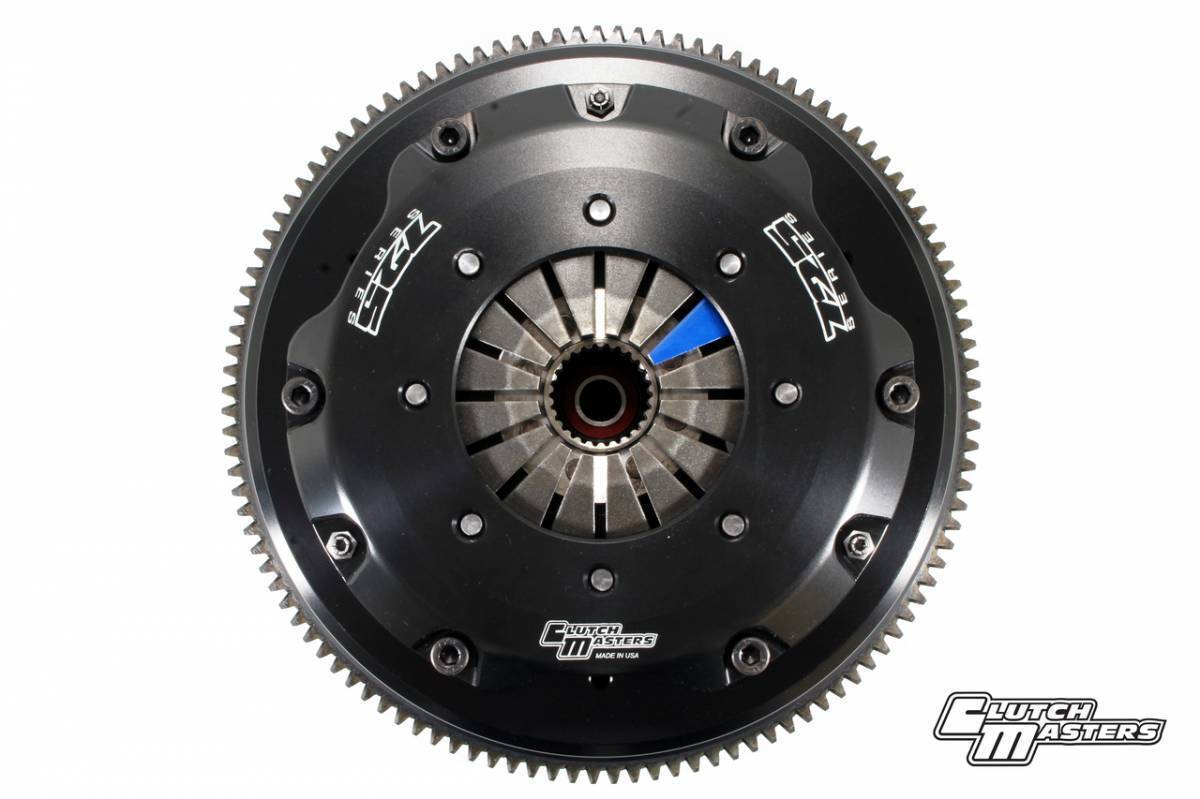

CLUTCHMASTERS HONDA K20 K24 FX725 TRIPLE DISC RACE CLUTCH KIT W/ LIGTHENED FLYWHEEL
The FX725 Custom Triple Disc is the ultimate in mulit-disc performance clutch kits for engines/transmissions with smaller bell-housings that are focused on drag racing. The Clutch Masters FX725 Triple Disc system has been developed from decades of experience in drag racing. Because of the minimal rotational mass the FX725 isn't ideal for the street but with improvements in friction material over the years we have been able to create a solution that can handle occasional street driving. The FX725 is designed to hold tremendous horsepower and torque, while maintaining reasonable peddle pressure to operate on the track.
Every Clutch Masters flywheel is proudly designed and manufactured in the USA. Flywheels are first designed in CAD and are then precision CNC machined in house in one of or Haas CNC lathes out of 6061 aluminum or 1045 steel billet cores. After machining, the flywheel is zero balanced to ensure it is evenly weighted on all sides and spins 100% true. Each aluminum flywheel is Type 3 Hard Anodized for the ultimate in durability and protection of the aluminum. All steel flywheels are black oxide coated to add a layer of rust prevention and gives our steel flywheels a unique black finish. The flywheel is then assembled by a Clutch Master Craftsman, double checked for imperfections and tolerances, and is then ready to be paired with your OEM clutch kit or one of our FX100-FX500 single disc clutch kits or twin disc options. All flywheels are SFI 1.2 Certified for use in motorsports.
The Clutch Masters Difference:
Clutch Masters' clutches are true High Performance Clutch Systems and are technologically superior to anything currently on the market.
To develop a clutch with all the desired performance characteristics for intended applications is the challenge of a high performance clutch company. Our clutch system is unique in the industry. We use Hi-Leveragetm technology in our pressure plates, which significantly increases clamping force with no unnecessary increase in pedal pressure. Discs are designed either with reduced Marcel or a solid hub design to take advantage of our Hi-Leveragetm pressure plate. The combination of these cutting edge technologies creates the finest clutch system on the market.
With many years in the industry, we have researched hundreds of friction materials and uses only the best materials available for each intended application. By combining the optimum clamping force with the finest friction materials - each with their own unique coefficient of friction - we have developed a line of clutches that provide ultimate performance in virtually any severe environment.
- Hard Anodized Aluminum Cover Assembly with attached Diaphragm
- Pressure Plate Ring
- Three Ceramic Rigid Discs
- Two Mid Plates
- Billet Steel Flywheel
- Release Bearing
- Pilot Bearing (when applicable)
- Pressure Plate Bolts
- 2006-2010 Acura CSX 2.0L Type-S 6-Speed K20
- 2013-2014 Acura ILX 2.4L 6-Speed K24
- 2002-2006 Acura RSX 2.0L 5-Speed K20
- 2002-2006 Acura RSX 2.0L Type-S 6-Speed K20
- 2004-2008 Acura TSX 2.4L K24
- 2009-2014 Acura TSX 2.4L 6-Speed K24
- 2003-2012 Honda Accord 2.4L K24
- 2002-2010 Honda Civic 2.0L 5-Speed K20
- 2002-2010 Honda Civic Si 2.0L 6-Speed K24
- 2012-2015 Honda Civic Si 2.4L 6-Speed
