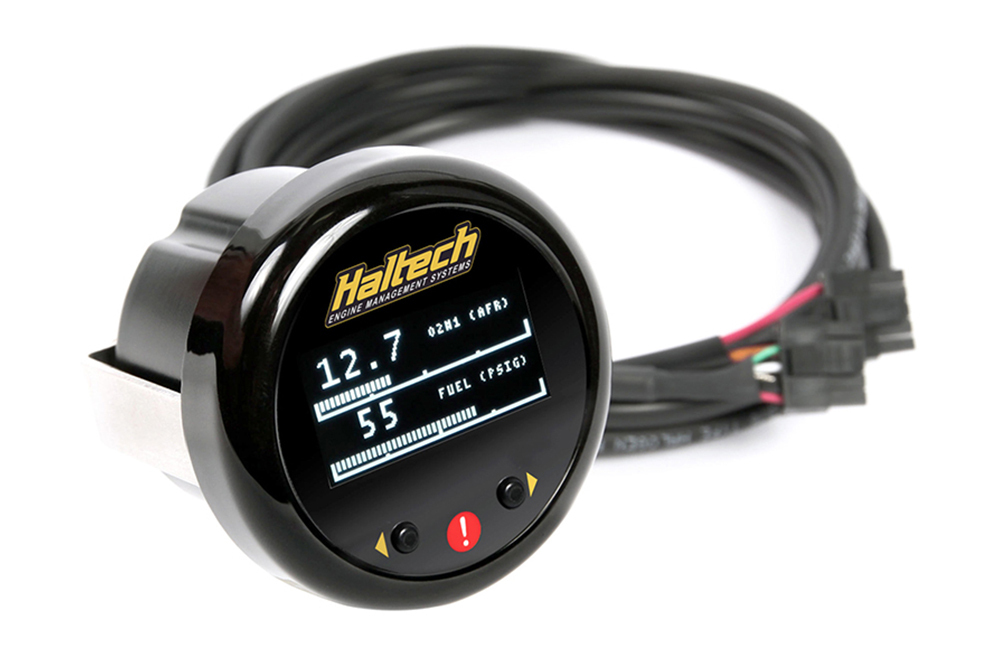

HALTECH MULTI-FUNCTION CAN GAUGE

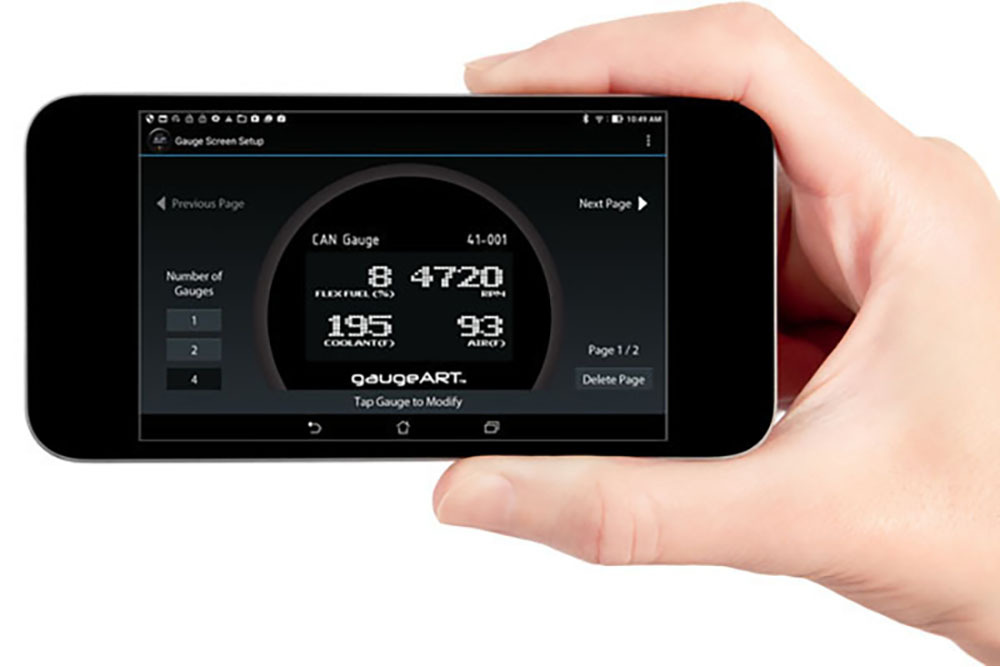

Haltech's new Multi-function CAN Gauge displays real-time data from your Haltech ECU. Easily customize your gaugeART CAN Gauge to display the data you want to see with the included gaugeART CAN Gauge App (requires Android 4.4 or later or Apple iOS 9.1 or later). The easy to use app on your smartphone or tablet uses a wireless connection to the gauge for easy setup and customization.
- Set up via gauge-mounted buttons or a mobile app
High contrast, dimmable OLED display

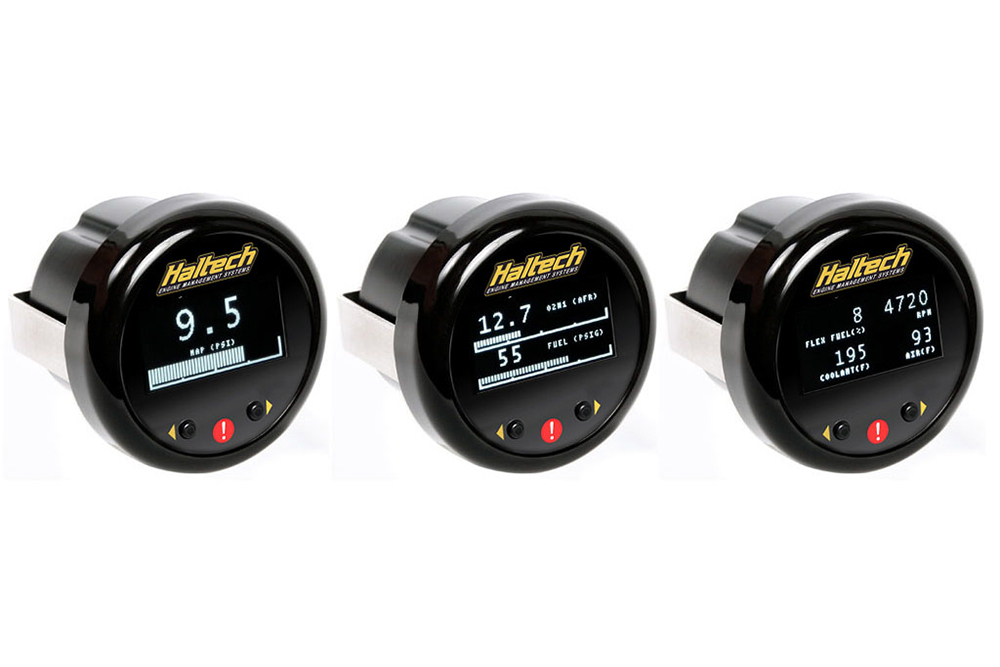

- 1, 2, or 4 gauge layouts on up to 10 different pages
Custom warning points with special warning screens
- Boost Pressure
- Air/Fuel Ratio
- Coolant Temperature
- Fuel Pressure
- Ethanol content
- above can be displayed without additional sensors.
- Haltech Platinum Sprint Series
- Haltech Platinum Sport Series
- Haltech Pro Plugin Series
- Haltech Elite Series
SIZE: 52mm (2")
SUITS: Haltech Version 2 CAN bus protocol.
INCLUDES: 52mm (2") CAN Gauge, gaugeART CAN Cable to 8 pin Black Tyco - 2.5m (8ft), mounting bracket.
NOTES: This product is direct Plug'n'Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or multiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Series ECU you will need a DTM4 to Tyco adaptor cable Part No. HT-130040.
