■Features
Intercooler Core
- A huge 22.4% increase in core’s area leads to immense improvement in cooling.
- The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
- The core is designed to be also installed with OEM piping

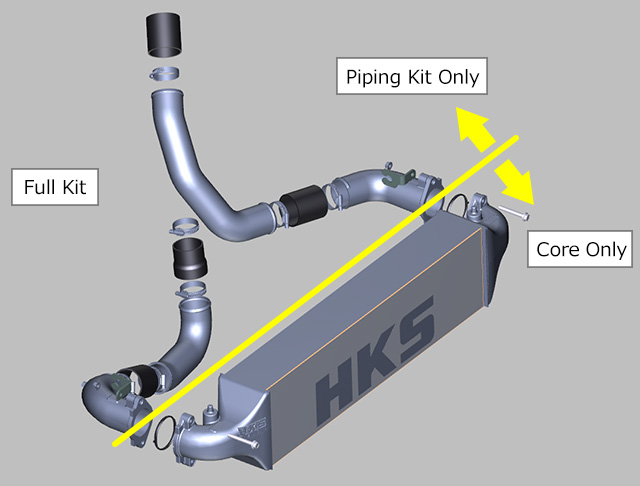

■Configuration


■Important Notes

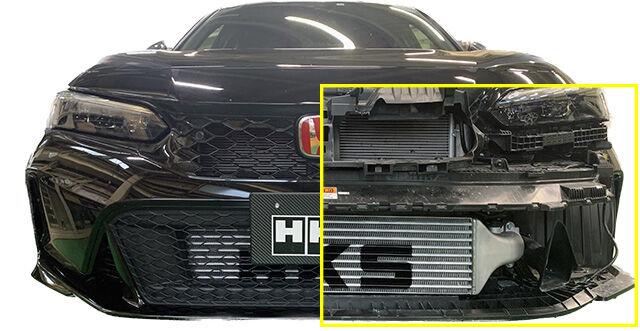

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.

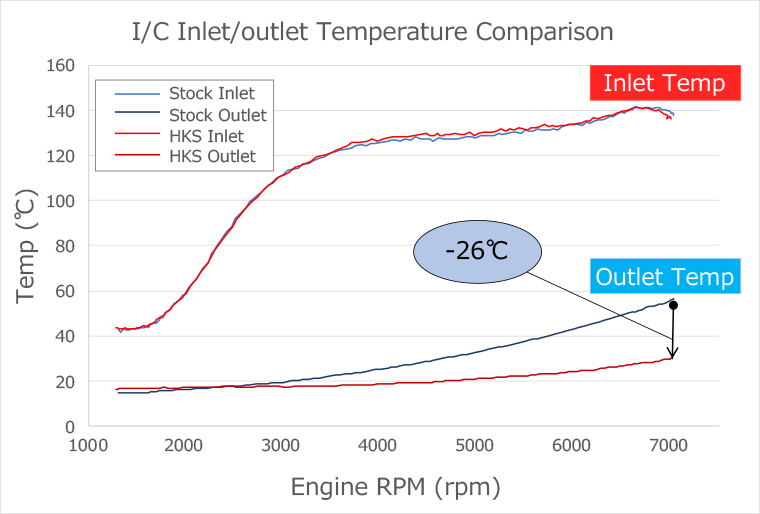

■Performance Comparison

(13001-AH007)
| SKU | 13001-AH007 |
| Brand | HKS |
| Shipping Weight | 8.0000kg |
| Shipping Width | 0.800m |
| Shipping Height | 0.500m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.120000000m3 |
