SKUNK2 K SERIES BILLET DROP IN OIL PAN BAFFLE KIT K20 K24

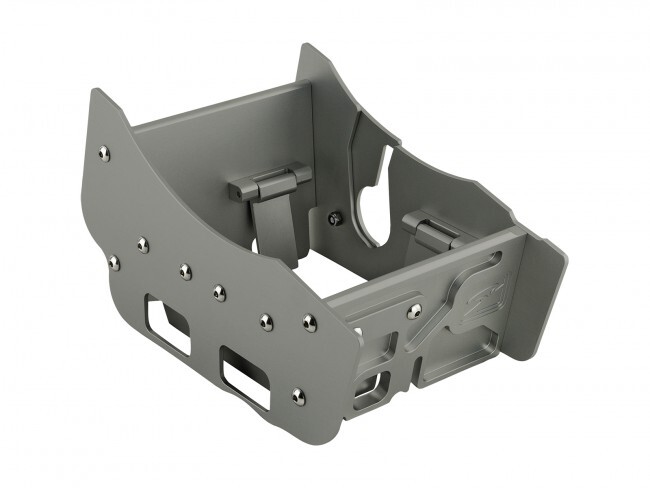

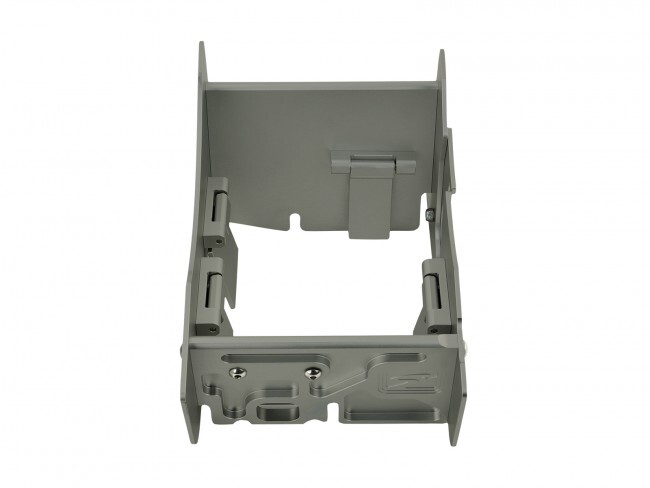

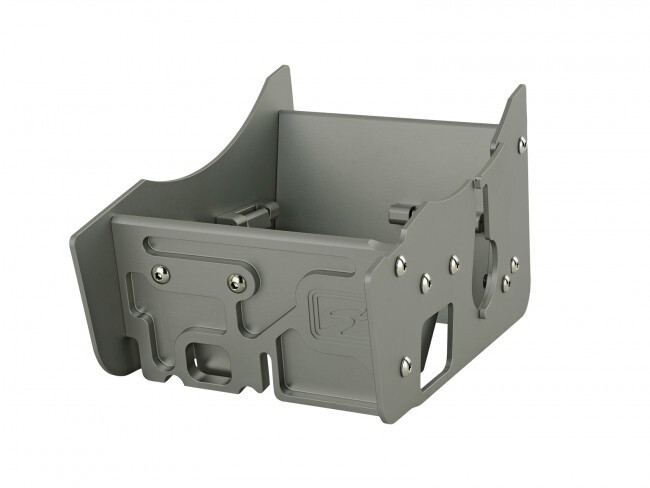

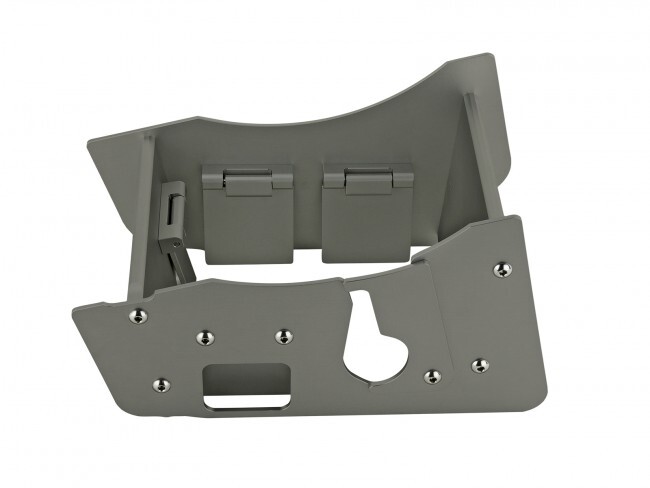

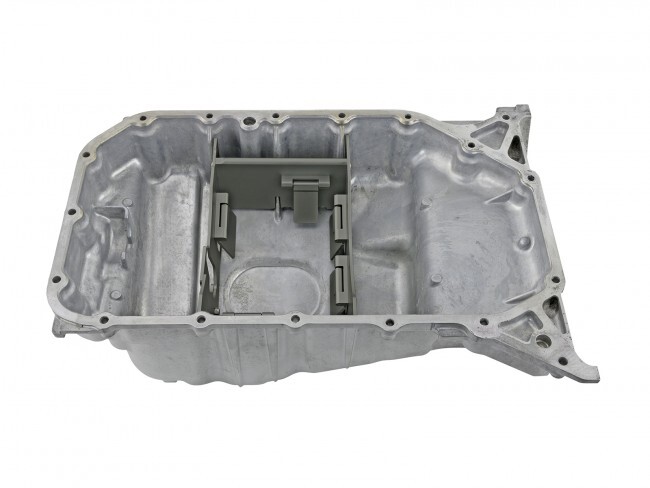

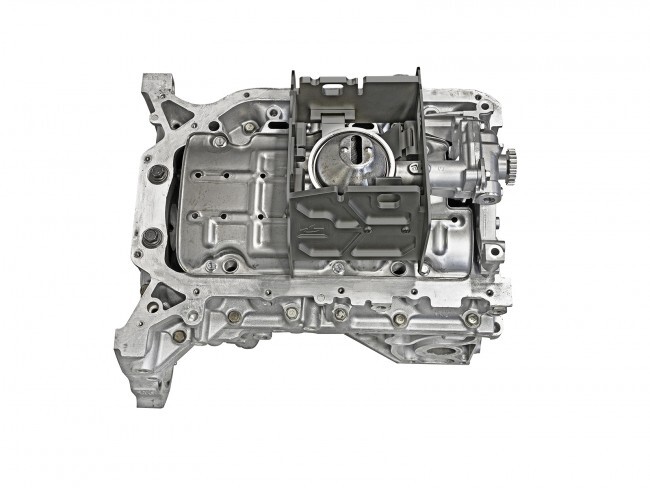

The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is for the serious hardcore racer. The baffle easily installs onto an existing K20A/K20A2/K20Z1 OEM Honda/Acura Oil Pan. The baffle sits flush with the oil pan floor and essentially “Boxes In” the Oil Sump Arm thus preventing Oil Sloshing/Oil Starvation under intense cornering, braking, and accelerating. Furthermore, the dividers and trap doors section off the sump to keep oil from moving aggressively from one side of the pan to the other. Another added feature is the open top design that allows an adequate amount of oil flow back to the pan. The design is simple and effective yet allows continuous oil pick-up where critical engine lubrication is maintained.
Features: Prevents oil starvation under heavy cornering, braking, and acceleration Easy drop-in design Cost Effective Oil Control Solution 6061-T6 Aluminum Construction Fits engines using K20A/A2/Z1 Oil Pump and Pan Direct drop-in fitment for JDM K20A (DC5/EP3 Type-R), K20A2 (02-04 RSX Type-S), K20Z1 (05-06 RSX Type-S) engines K-series Engine Compatibility Notes: The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines.
USDM 02-04 RSX Type-S (K20A2) ·
USDM 05-06 RSX Type-S (K20Z1) ·
JDM K20A Engines (EP3 Civic/DC5 Integra Type-R) ·
AUDM K20A2 Engines (DC5 Integra Type-R) ·
AUDM K24A3 Engines ( Accord EURO CL9 * Must be fitted with Type R oil pump conversion and alloy sump )
Will fit other Honda K-Series with all of the following modifications:
DC5 Type R (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000
DC5 Type R (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01
DC5 Type R (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004
DC5 Type R (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004
