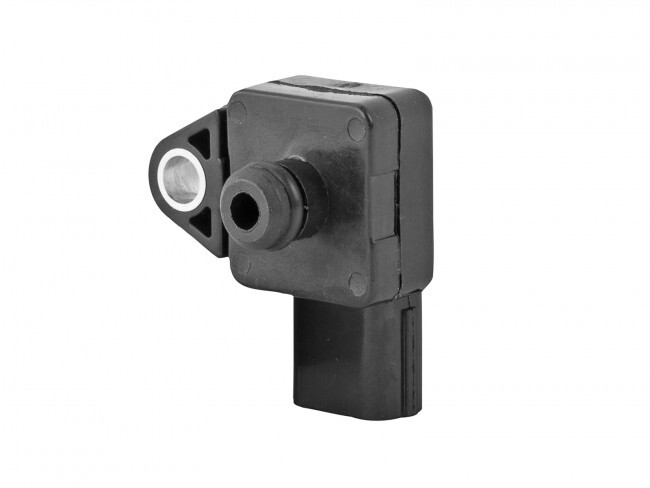

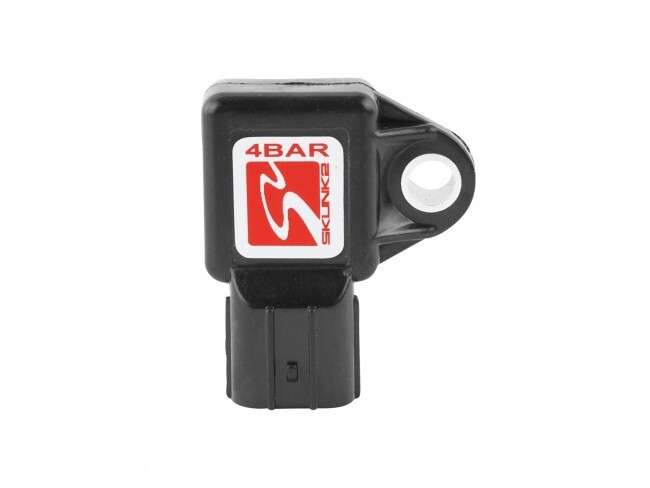

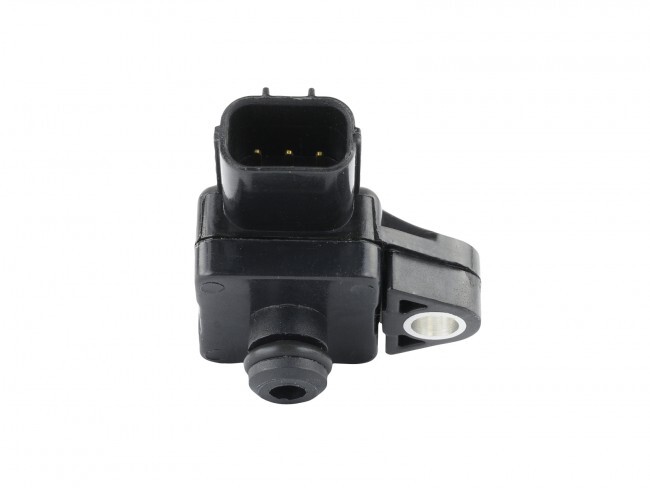

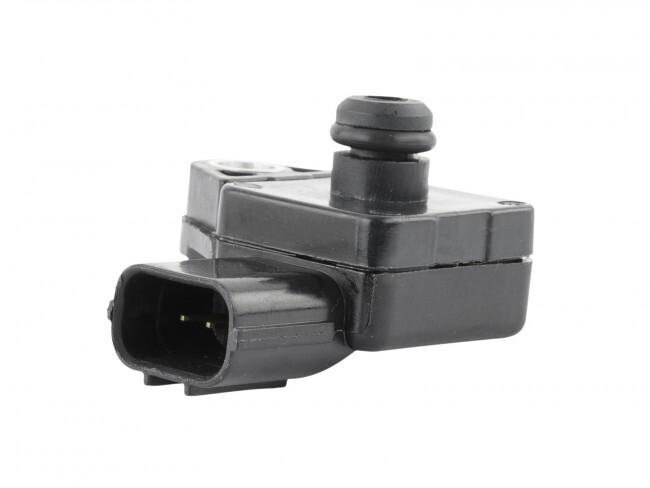

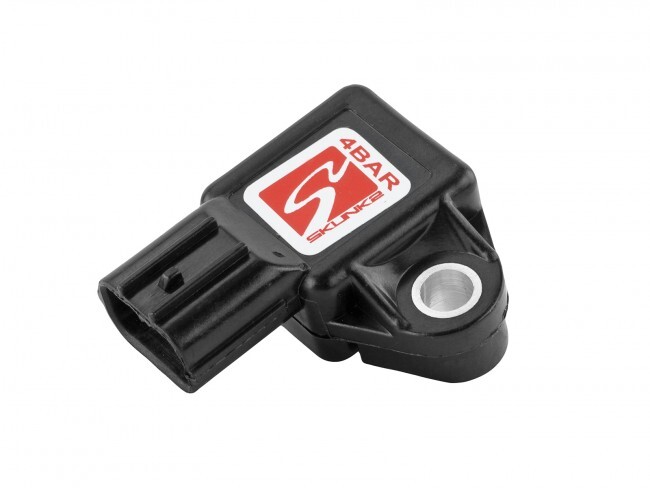

SKUNK2 MAP SENSOR - 4 BAR K24Z/ F22C
Skunk2 is proud to offer our very own 4 BAR MAP Sensor for the 2012-2015 Civic Si and 2006-2009 S2000 for all your boosted K24Z/ F22C engine needs!
- 2006 - 2009 Honda S2000 (Base, CR)
- 2012 - 2015 Honda Civic (Si)
A 1 BAR MAP sensor reports barometric pressure times one, which is approximately 14.7 psi or 30in/Hg (inches of mercury). 2 BAR or 3 BAR simply mean two or three times above barometric pressure. The sensor will measure each direction, vacuum or pressure.
1 BAR is for a normally aspirated engine
2 BAR will handle a forced induction up to 14.5 psi of boost
3 BAR will handle a forced induction up to 29.0 psi of boost
4 BAR will handle a forced induction up to 43.5 psi of boost
A vehicle's computer is calibrated to function at a specific level as programmed by the design engineer. A 2, 3, or 4 BAR MAP sensor placed in a system designed for a 1 BAR sensor will not function correctly; in fact the system will run very rich because of the low return voltage signal. A computer that is programmable is a must for any tuner attempting to boost their engine's output with the addition of a turbocharger and a 2, 3, or 4 BAR MAP sensor.
