SKUNK2 ULTRA RACE CENTERFEED INTAKE MANIFOLD - K20A2 STYLE - BLACK
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the '02-'05 Civic Si and '02-'06 DC5/ DC5 Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

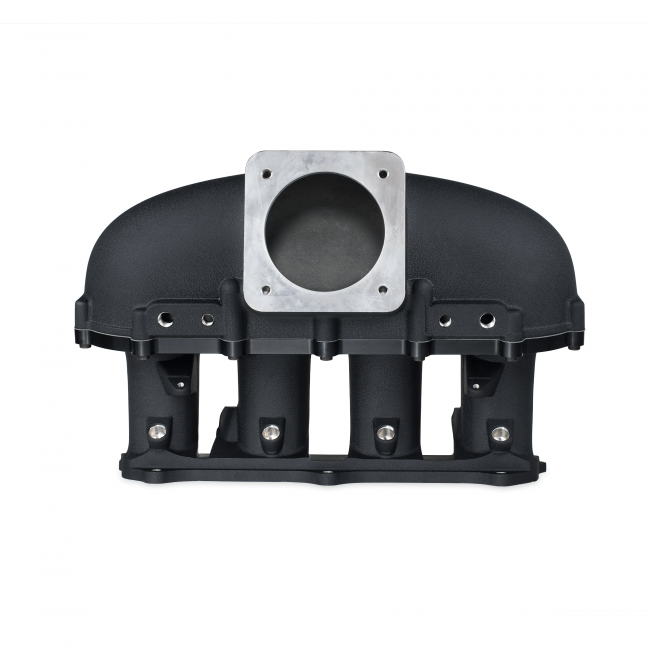

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0” Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
3 x 1/8” NPT and 3 x 1/4” NPT Accessory Ports
Hi-Grade Mounting Hardware

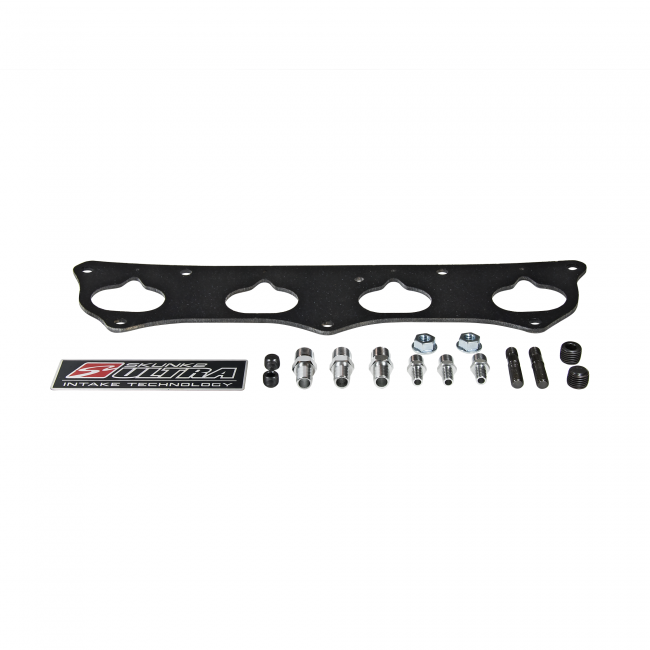

Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D677700
- K-Series - K-Series Any Acura (Any)
- K-Series - K-Series Any Honda (Any)
The K Series Ultra "Race" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.
RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
6.0 Liter > 600-1000HP
7.0 Liter > 1,000HP Up
US Patent: D677700
