T7 DESIGN K20 K24 ELECTRIC WATER PUMP KIT RAW ( OEM ALTERNATOR )
K20/K24 Billet Water Plate Kit - Raw Billet Finish

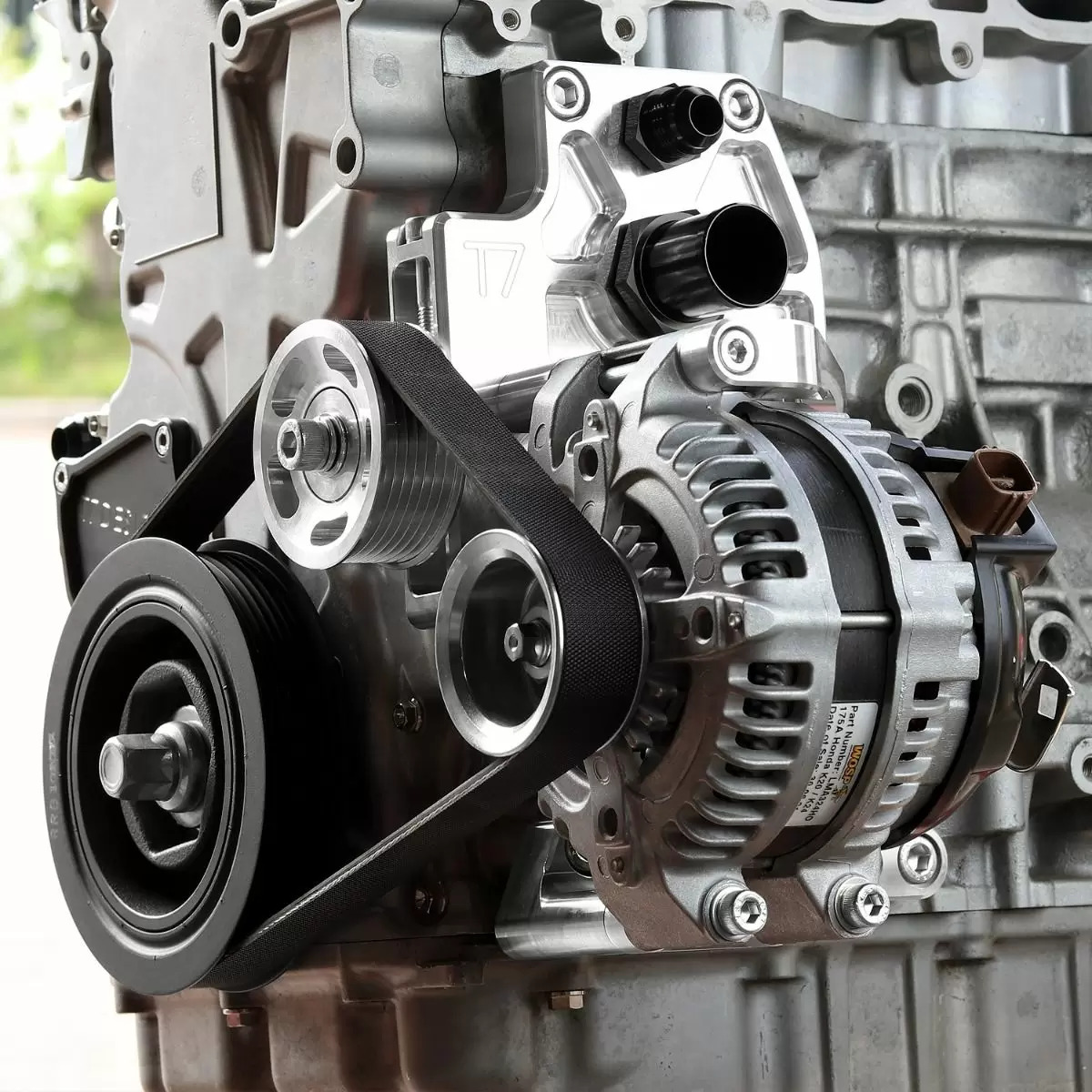

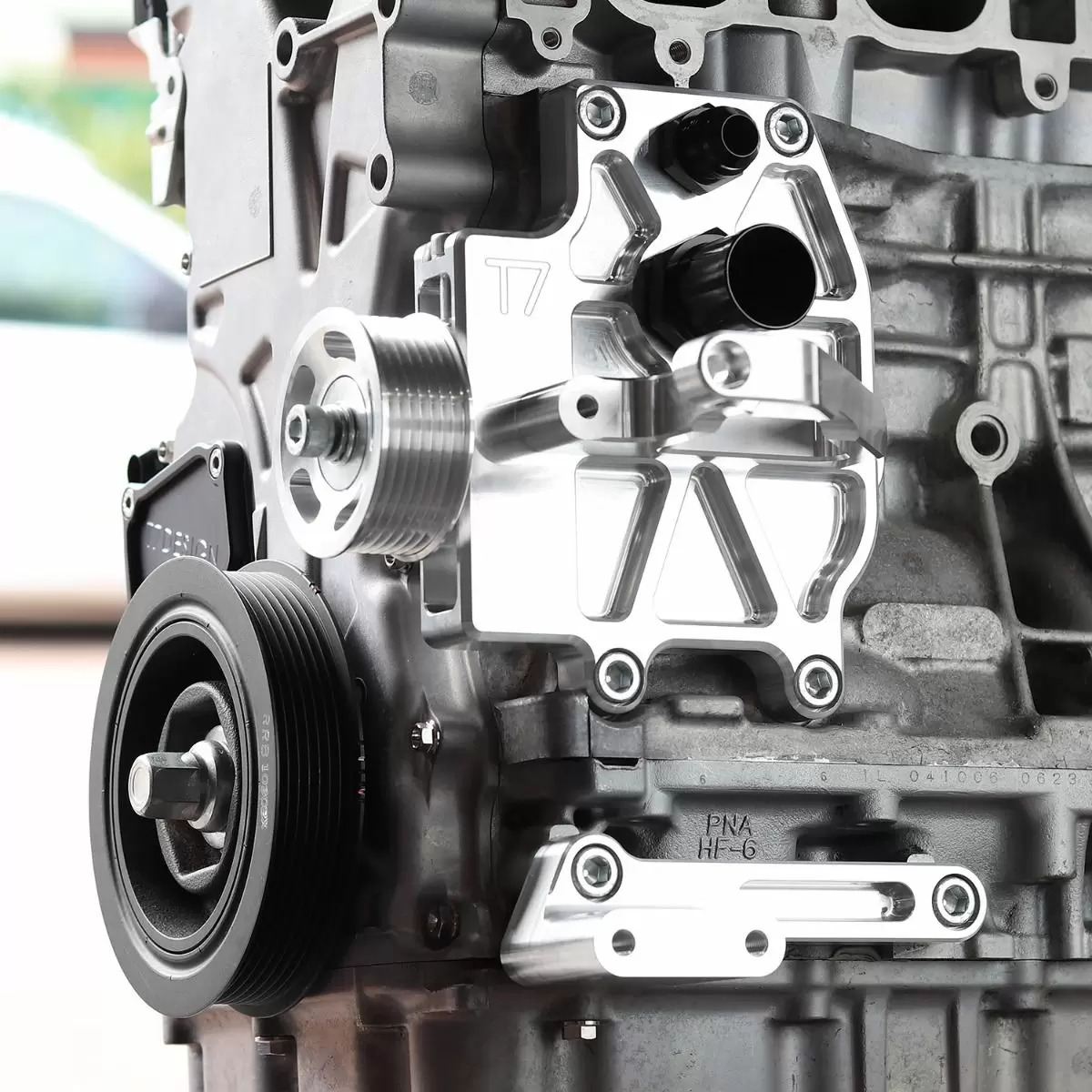

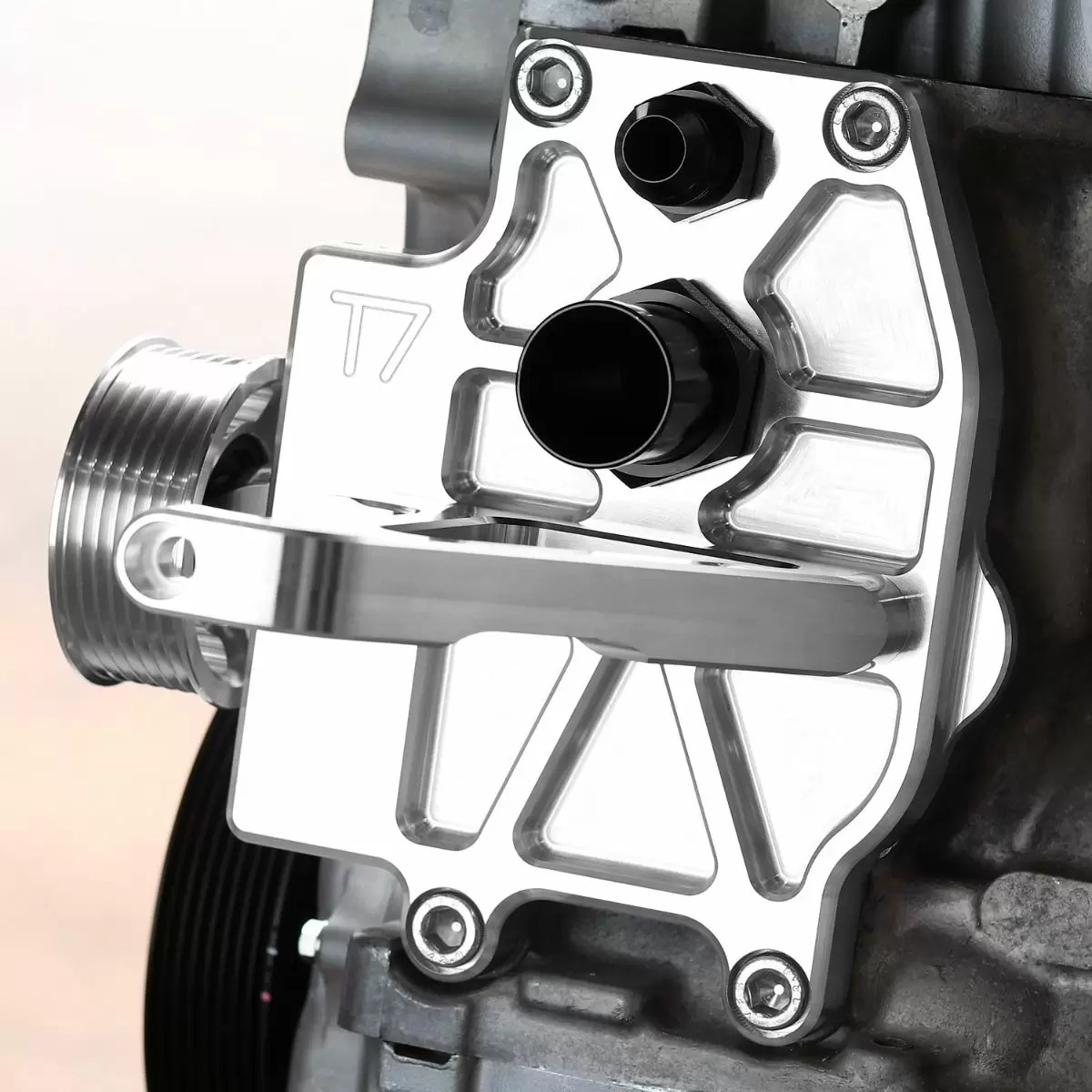

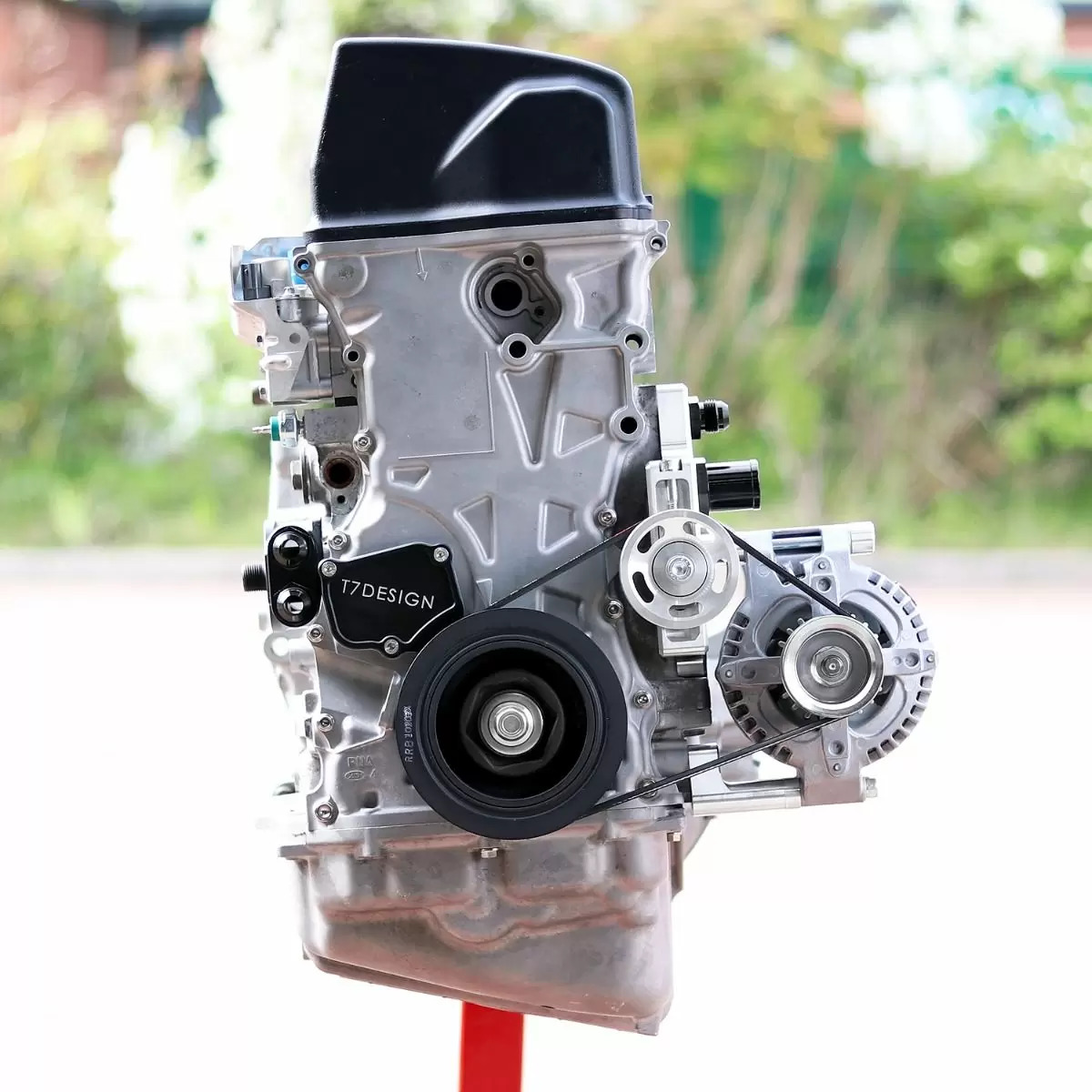

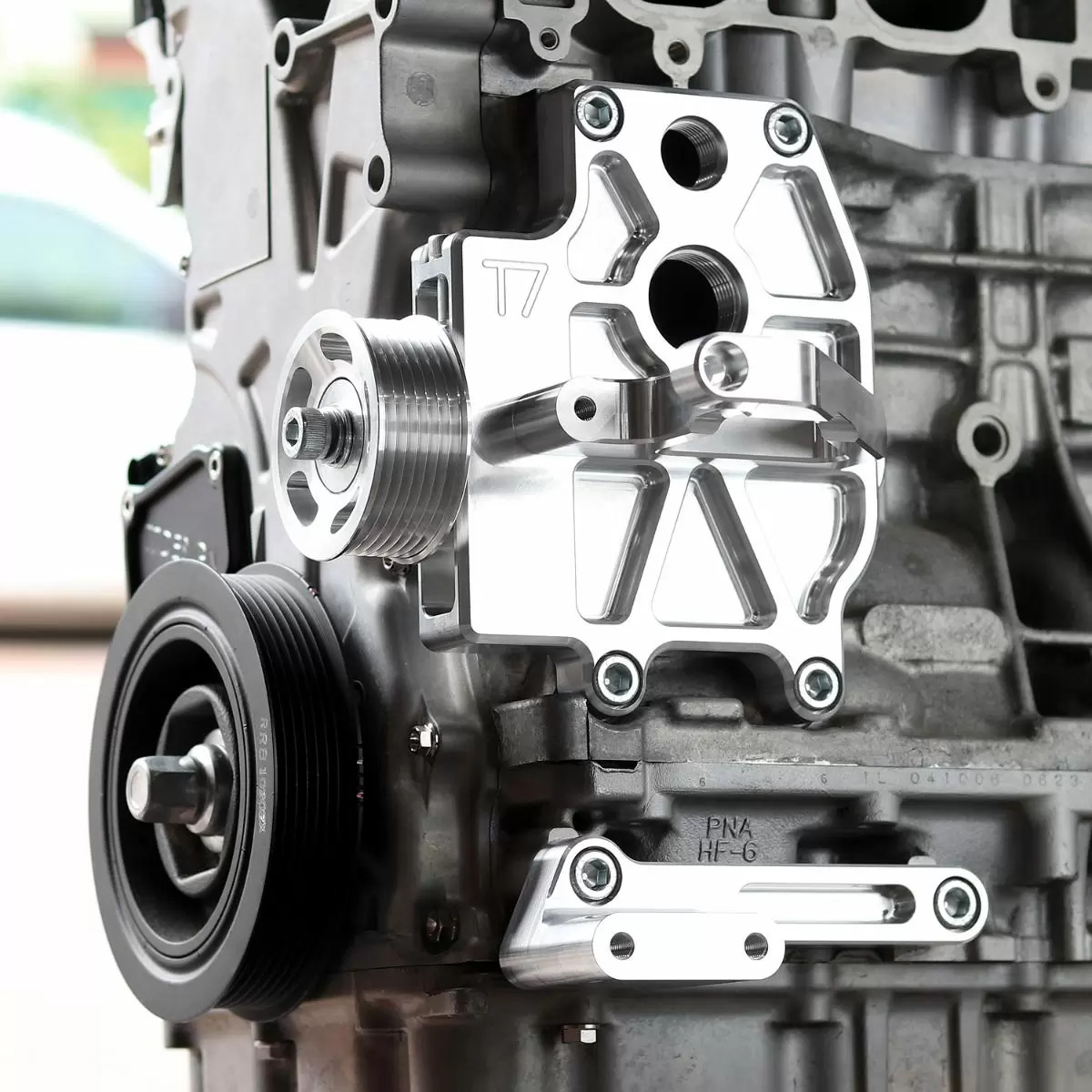

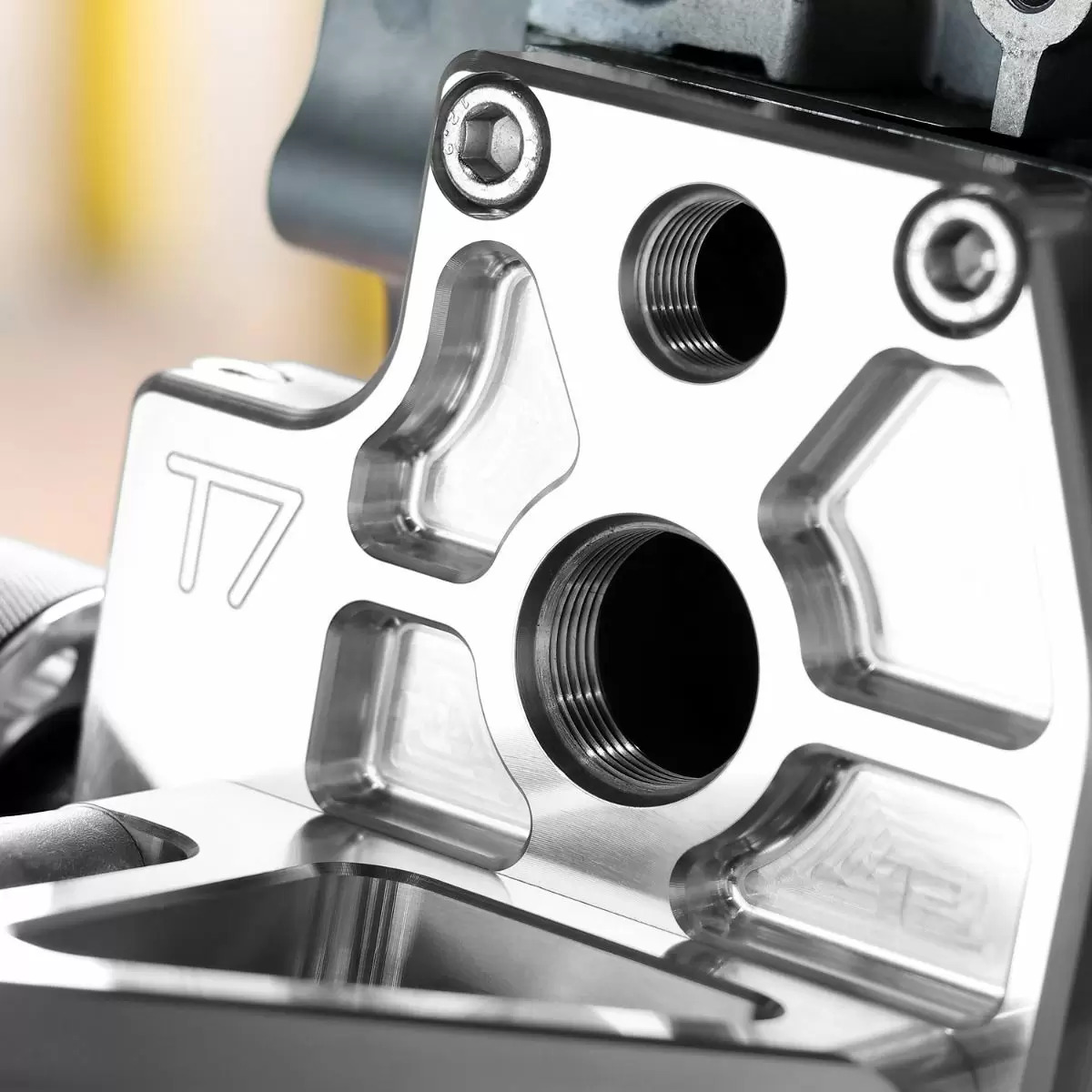

Introducing our new billet water plate kit for the Honda K20 and K24, this kit has been specifically designed to save weight, reduce parasitic drag and tuck the OEM alternator closer to the block. Our kit removes the hefty mechanical pump, housing, thermostat, bypass hose, tensioner and idler pulley resulting in a considerable weight and space saving. Our kit also allows you to retain the original alternator and is compatible with both versions of OEM K20 alternators, and aftermarket high-output alternators as long as they run the original casings.
We recommend this kit to be used in conjunction with a Davies Craig EWP130 with Digital Controller (8990).
The included belt is compatible with the K20a (5.12" Dia) and K20a2 (5.47" Dia) crank pulleys, anything larger and you may have to use a longer belt.
*Belt Tension Guide - Please ensure the belt tension is within the range specified in the attached Belt Tension Guide.*
For race applications where you may see higher than stock RPM it would be worth under driving the alternator pulley by installing a larger alt pulley, this may also require a longer alternator belt.
FEATURES & BENEFITS
- Fully machined from billet 6061-T6 Aluminium; a high strength, low weight alloy.
- Pully slider machined from 316 Marine grade Stainless Steel for superior finish and corrosion resistance.
- Designed from a fully laser scanned K20 ensures perfect fitment and belt alignment.
- Manually adjustable tensioner ensures fine tuneable belt tension.
- Includes a high quality 7 Rib Gates belt, and a GKN high temp sealed pulley bearing.
- High strength, multi-piece design ensures alternator is fully secured.
- Available in RAW or Anodised Black finish.
- No alternator pulley swap required.
- Designed to fit almost all K20 & K24 engines apart from K24Z4.
- Designed for street, circuit and strip use.
|Hose Compatibility||32mm (1.25") or AN16|
|Top Port||AN10 Crank Case Breather|
|Material||Billet 6061-T6 & 316 Stainless Steel|
|Finish||Media Blasted & Anodised Black|
|1x||Technical Diagrams including Bill-of-Materials|
|1x||Billet Water Plate Kit|
|1x||Billet Pulley with Pressed in GKN Bearing|
|1x||Bolt & Hardware Pack|
|1x||7-Rib Gates Belt|
- Compatible with both old and new style K20 alternators.
- Requires electric water pump.
- Do NOT mount your electric water pump to your engine, any vibrations can shorten the life span of the engine. Please rubber mount the pump to the chassis.
- This kit deletes the mechanical water pump, Air Conditioning and Power Steering.
