UNIT2 FABRICATION RRC/RRB DROP IN BAFFLE FD2 TYPE R K20
The long-awaited baffle system for the 8th generation Civic FD2 Type R.
A challenge when planning to track your 8th gen Civic is finding an oil pan or baffle system that is compatible with the rear engine mount. Some choose to remove the rear mount and run only the front mount but this frequently results in replacing broken front mounts and repairing cracked subframes.

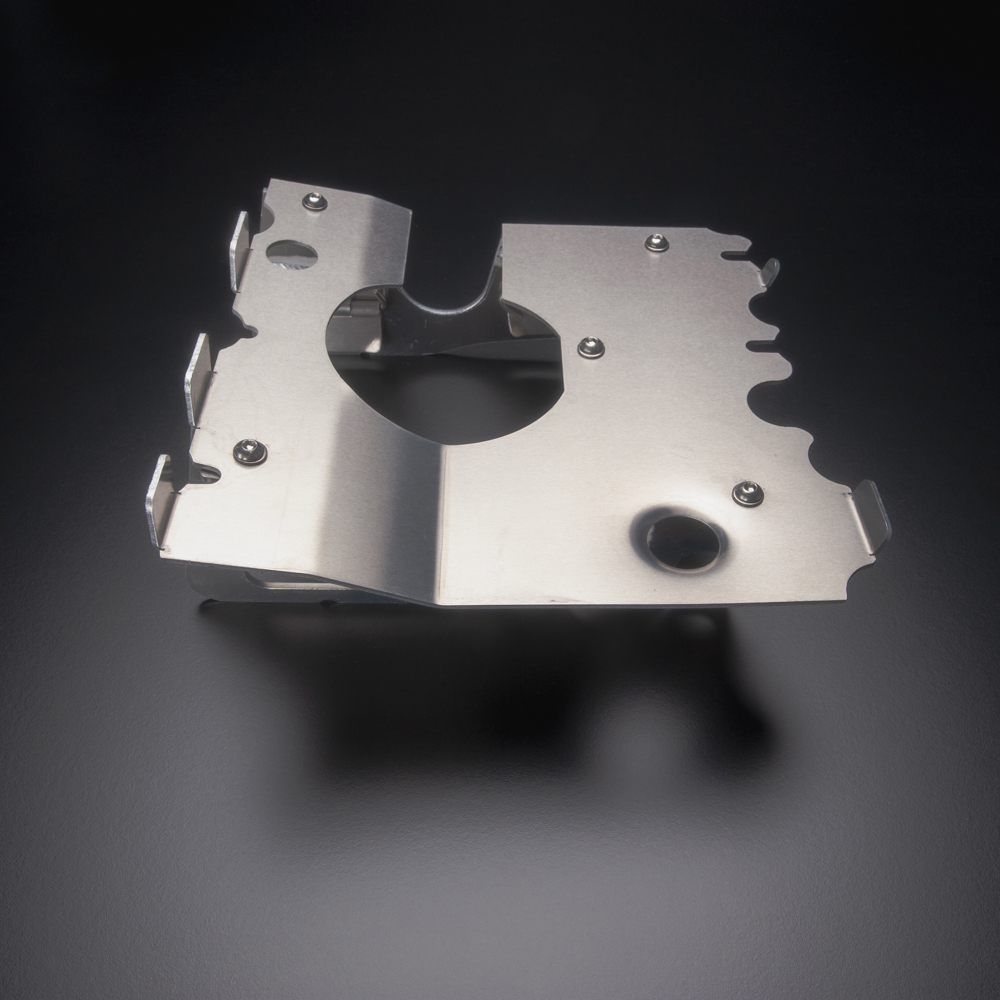

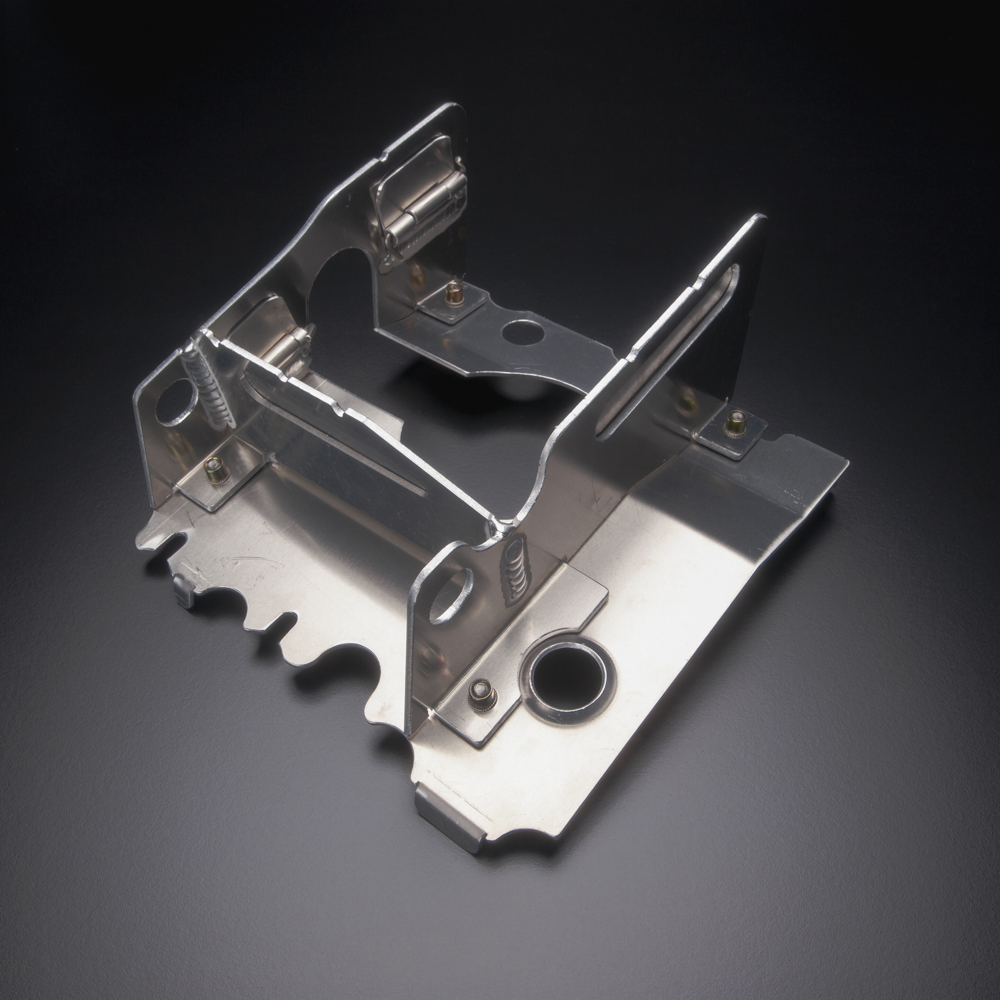

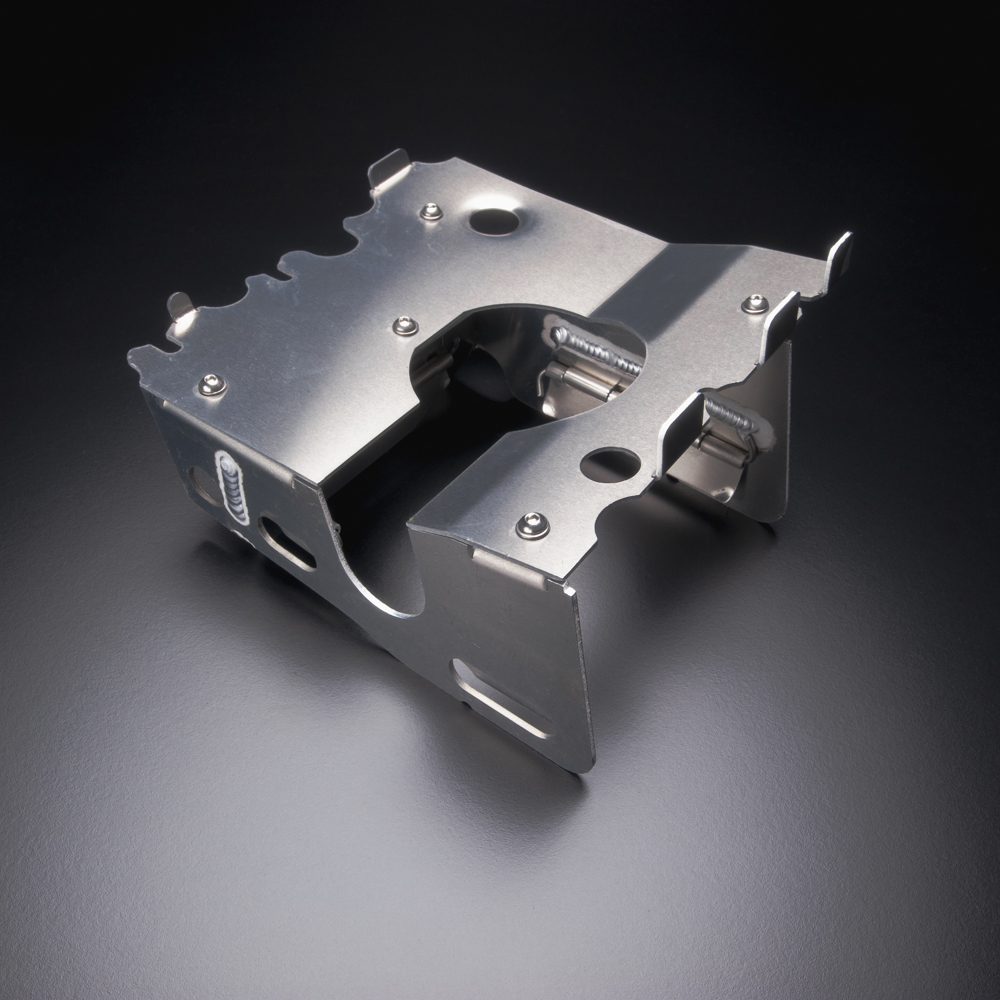

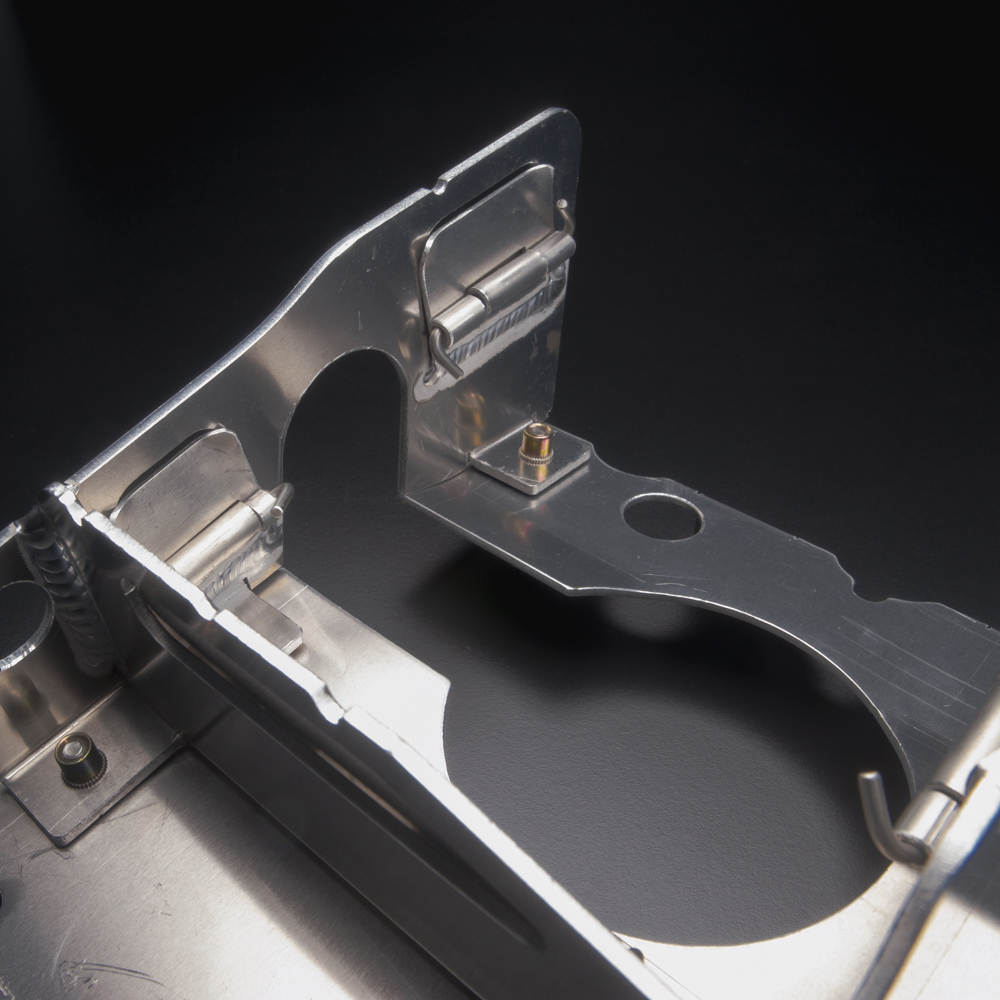

Our newly designed baffle system uses the same principles as the rest of our proven K-series oil pans but in a drop-in package for the RRC/RRB oil pan. Separating the pan into 4 compartments using 4 trap doors to control the oil flow.
This baffle system can be installed by simply pushing the baffle system down into the pan securing itself with the 5 pressure fit tabs located on the removable top plate. If you desire a more permanent installation the lower section can be welded into the pan leaving the top plate removable for any future cleaning/service.
NOTE: When installing a PRB oil pump we highly recommend pairing it with our pickup adapter as with an RRB or RRC pan the pickup-to-pan floor distance is much greater than it should be. Since these pans were designed to be paired with an RRC or the larger RBB Balance shaft oil pumps they are actually deeper than any other k series pan.
(U2F-RRCRRB-DI)
| SKU | U2F-RRCRRB-DI |
| Brand | UNIT2 FABRICATION |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.180m |
| Shipping Length | 0.300m |
