- Compatible AC/PS
- EG/EK/DC2 Chassis
- SCH10 1.5" steam pipe
- 44/45mm wastegate V-band flange
AU $1,050.00 GST incl
*A $6 monthly account fee applies
(only payable if a balance is owing) See full Ts & Cs

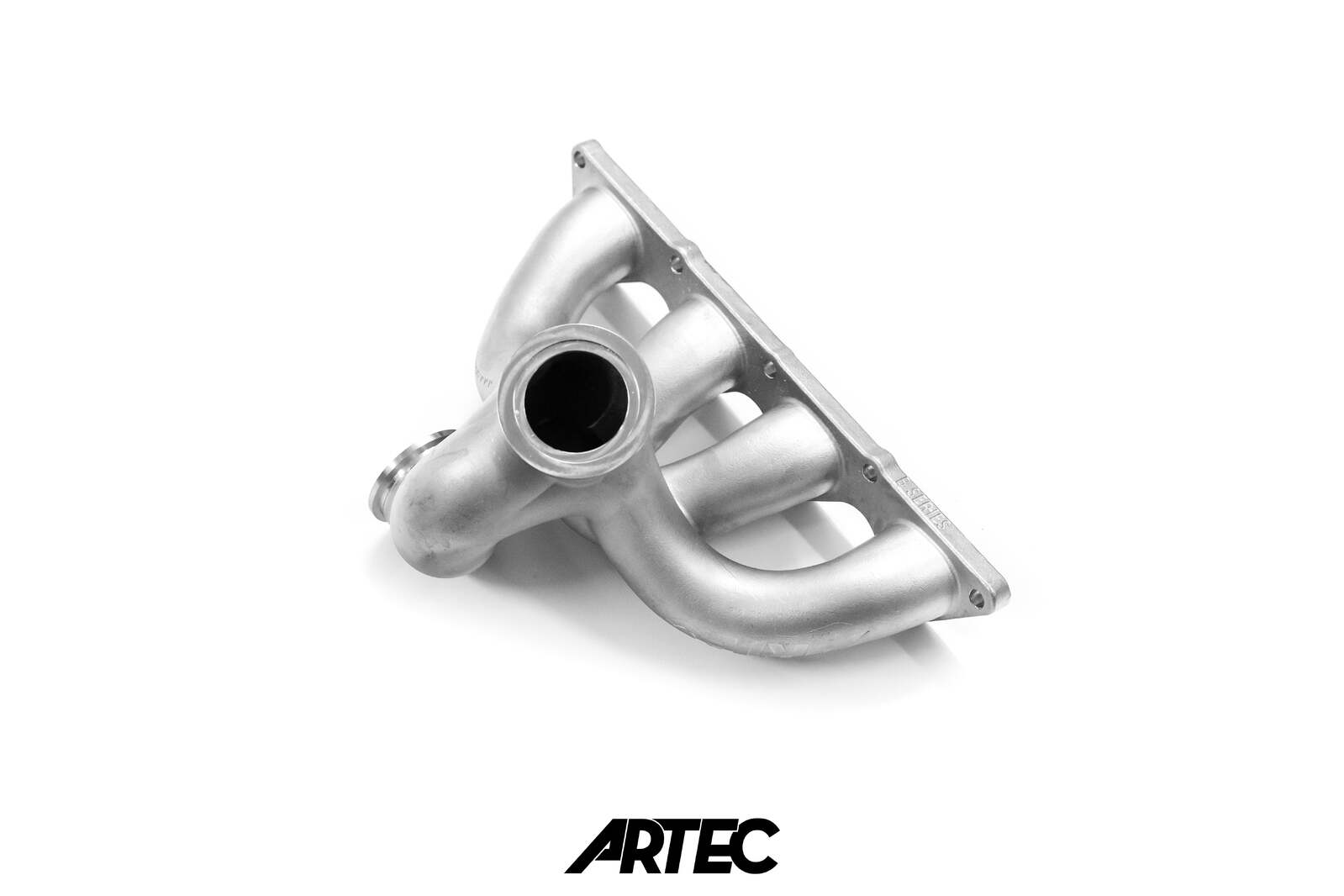

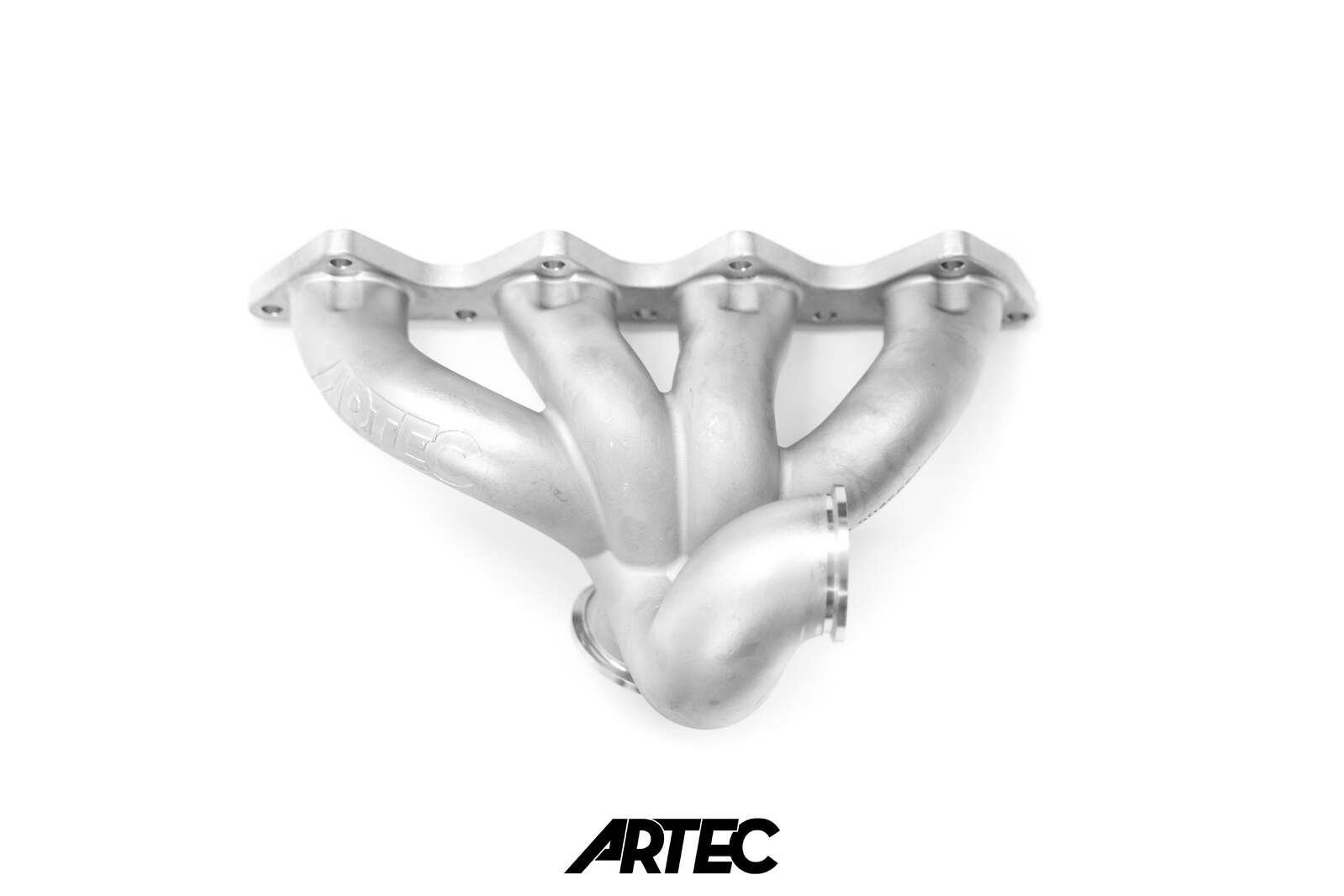

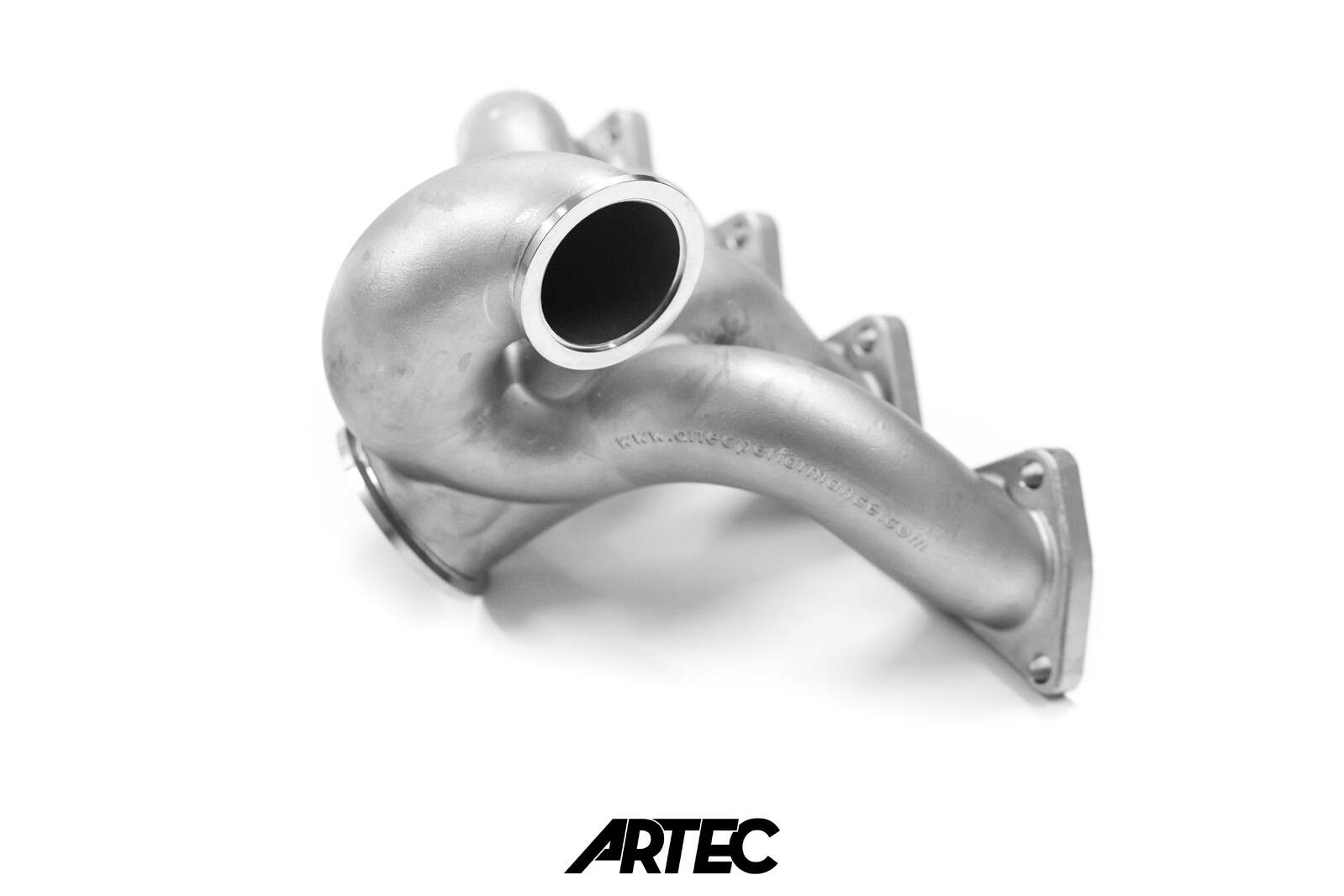

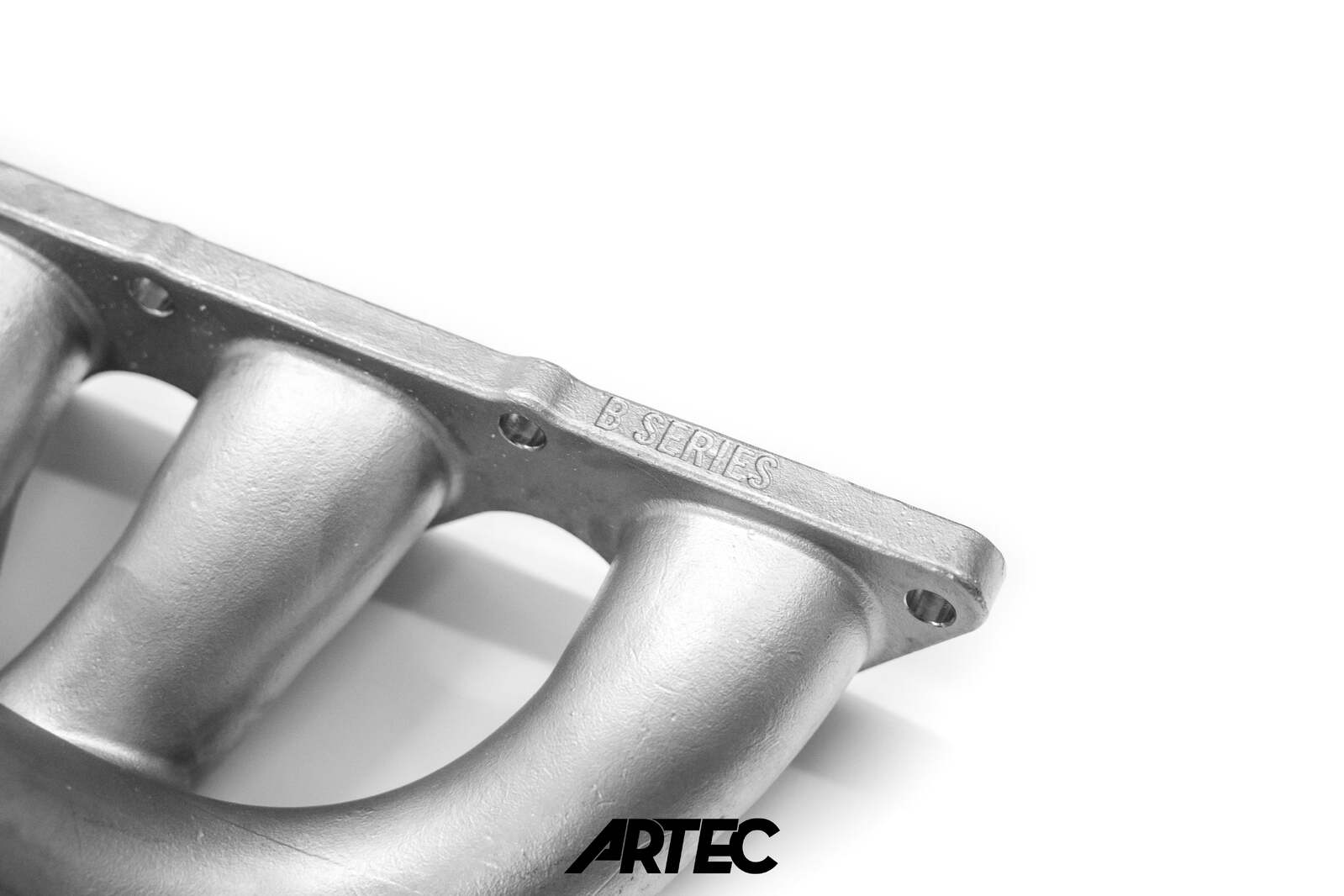

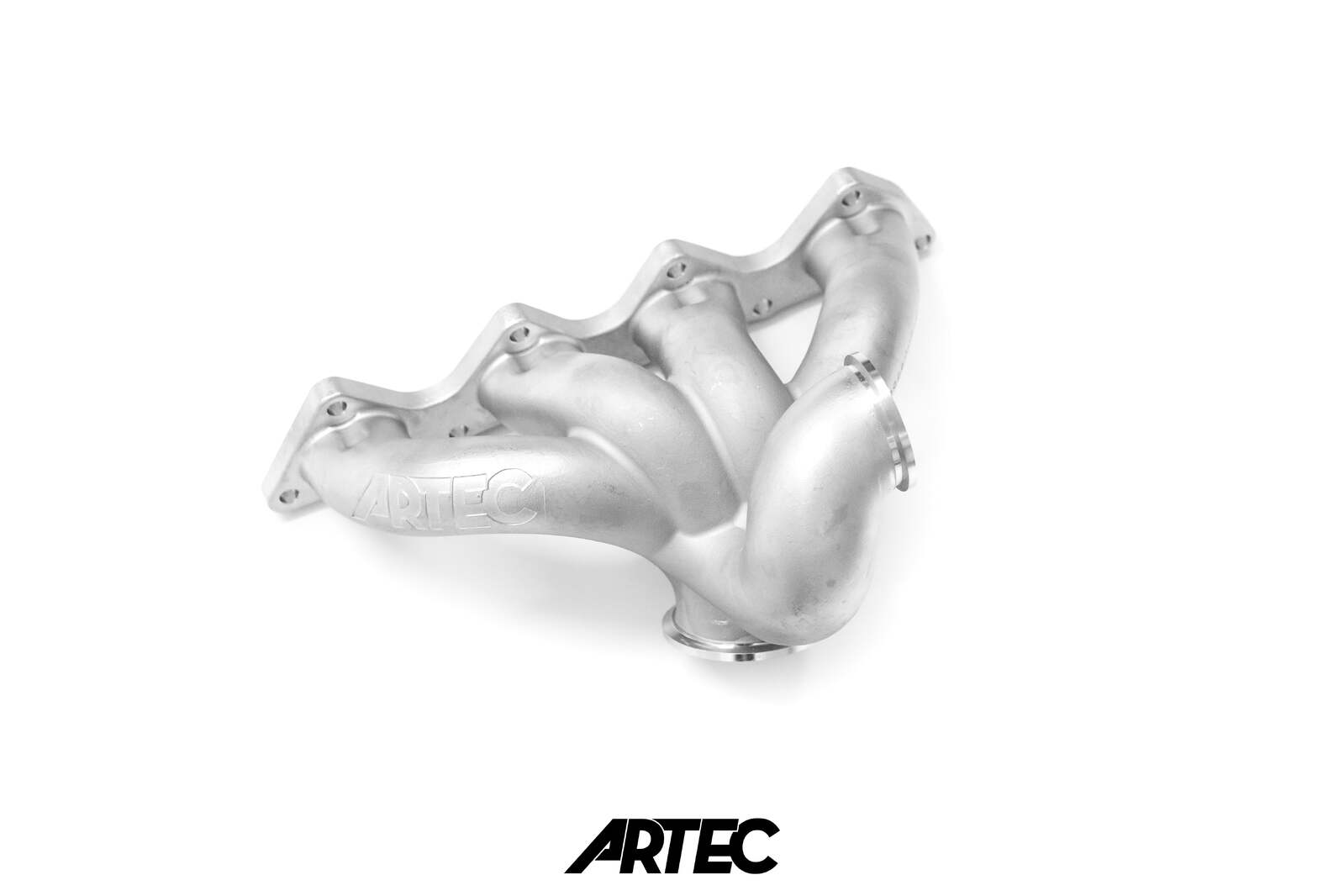

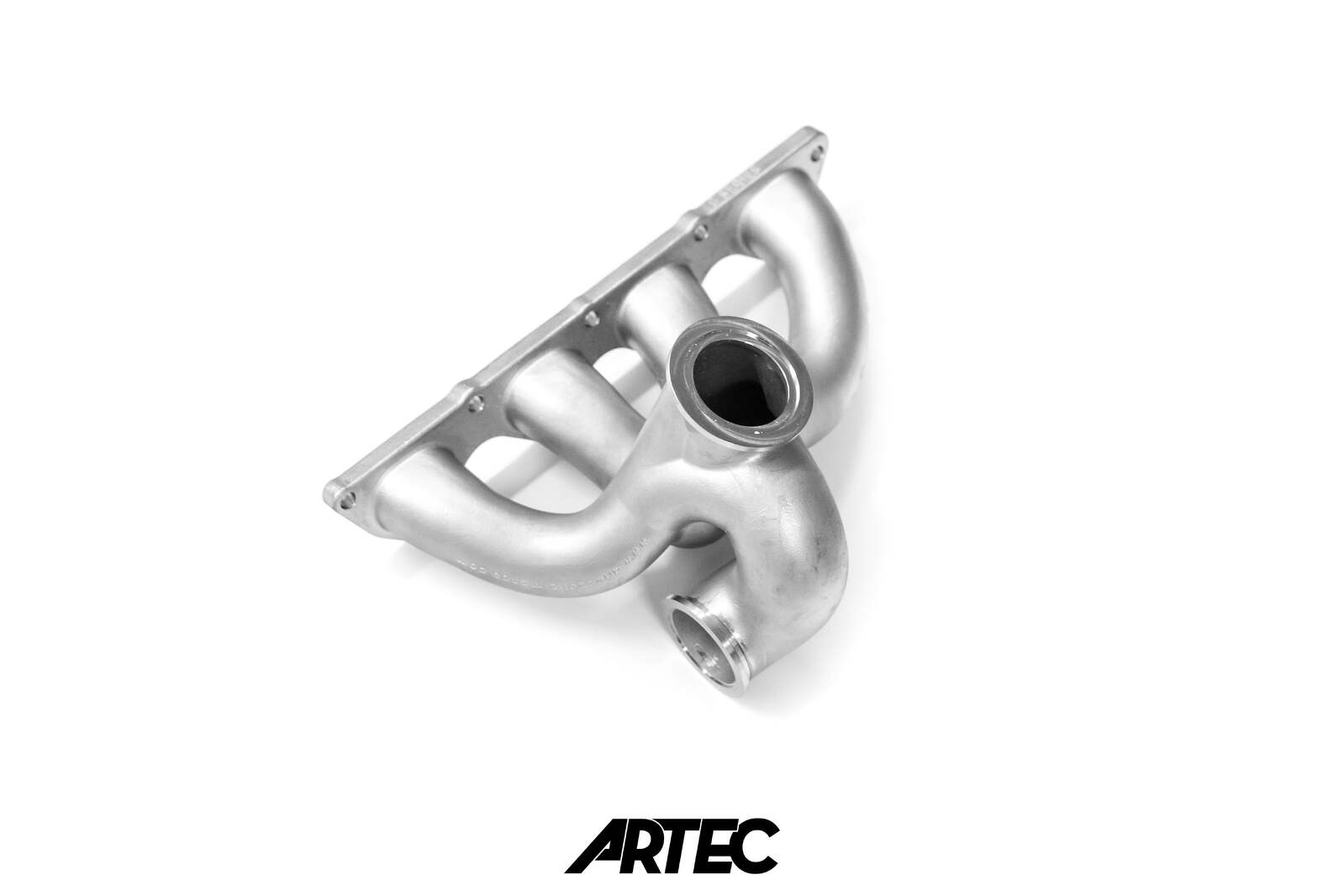

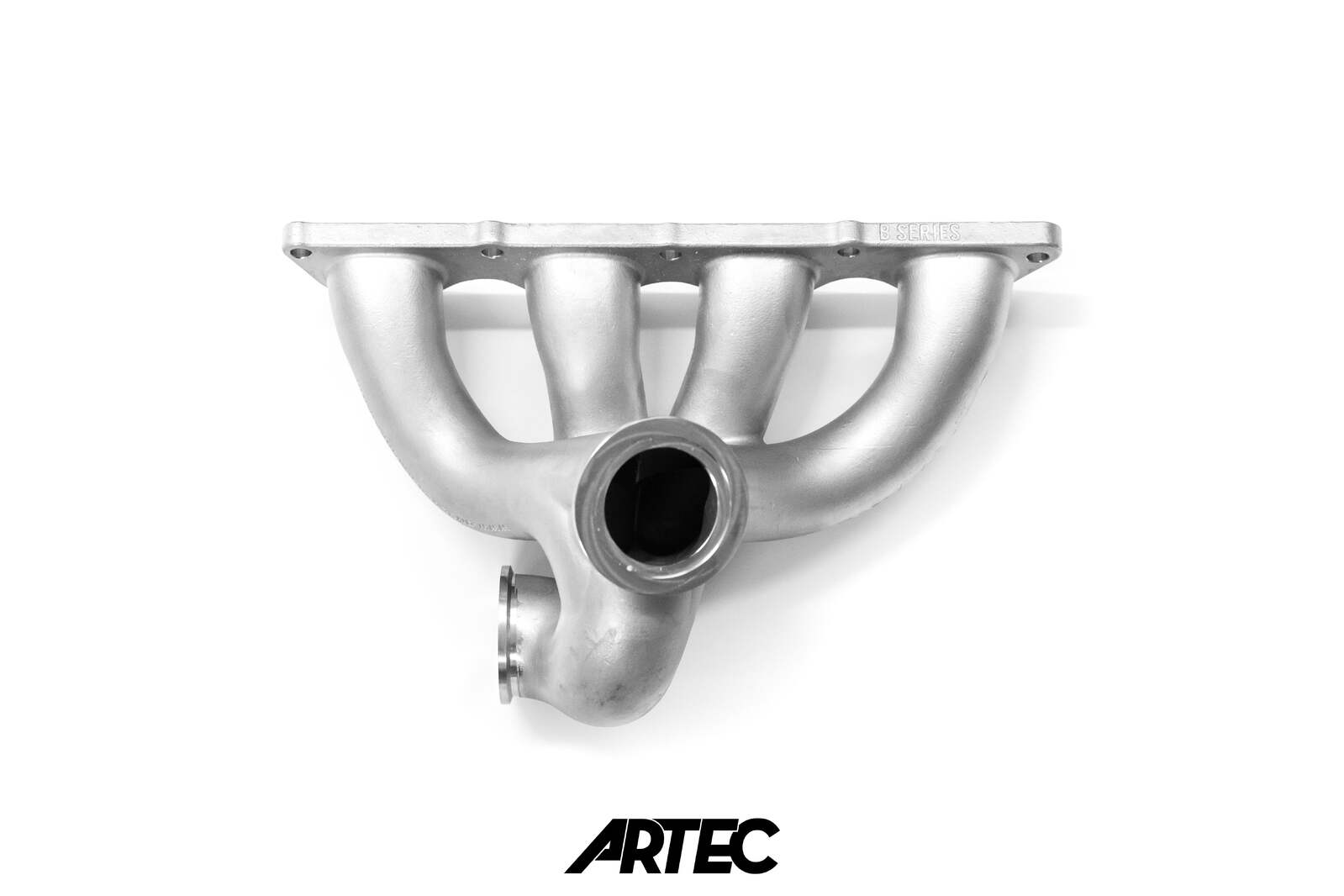

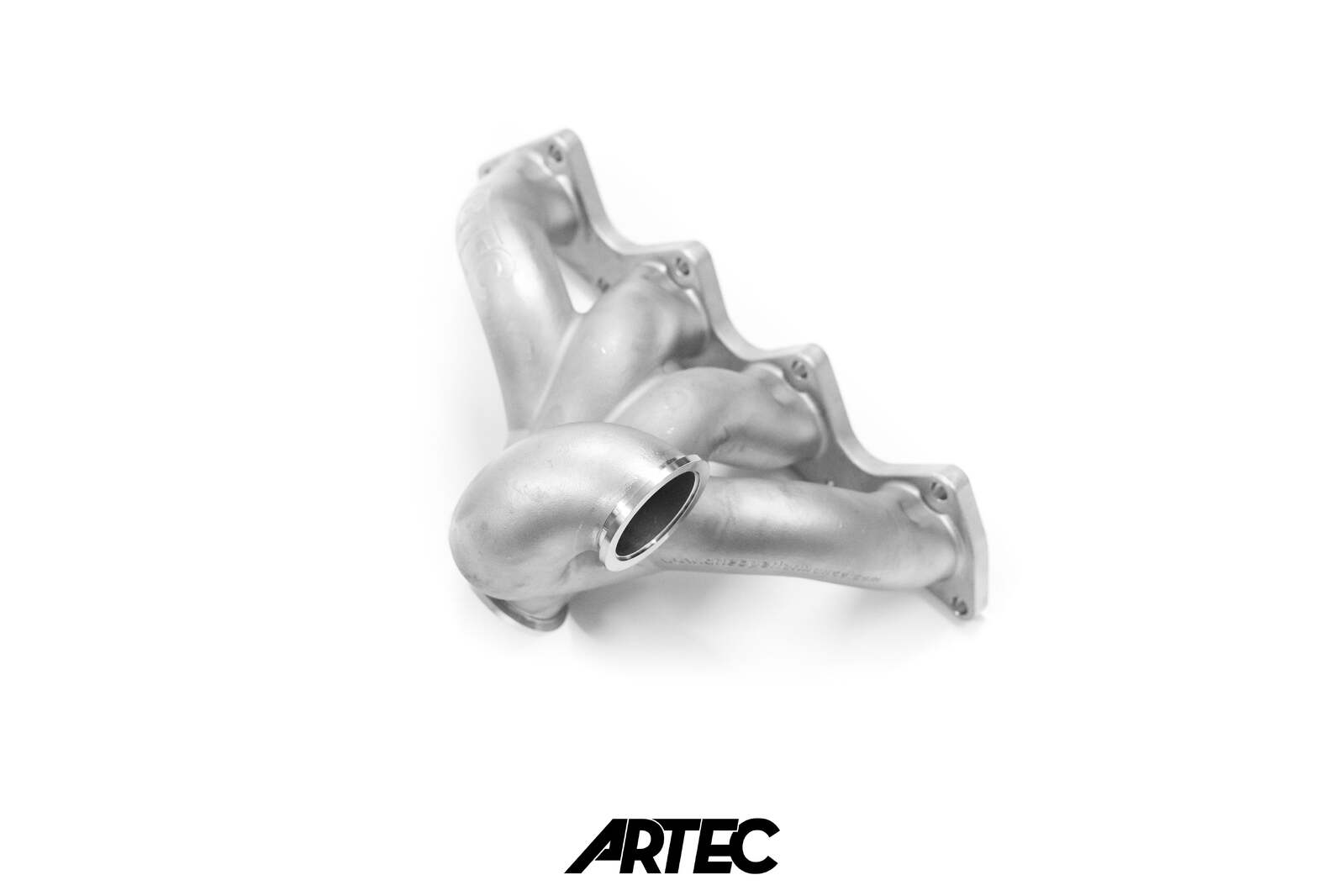

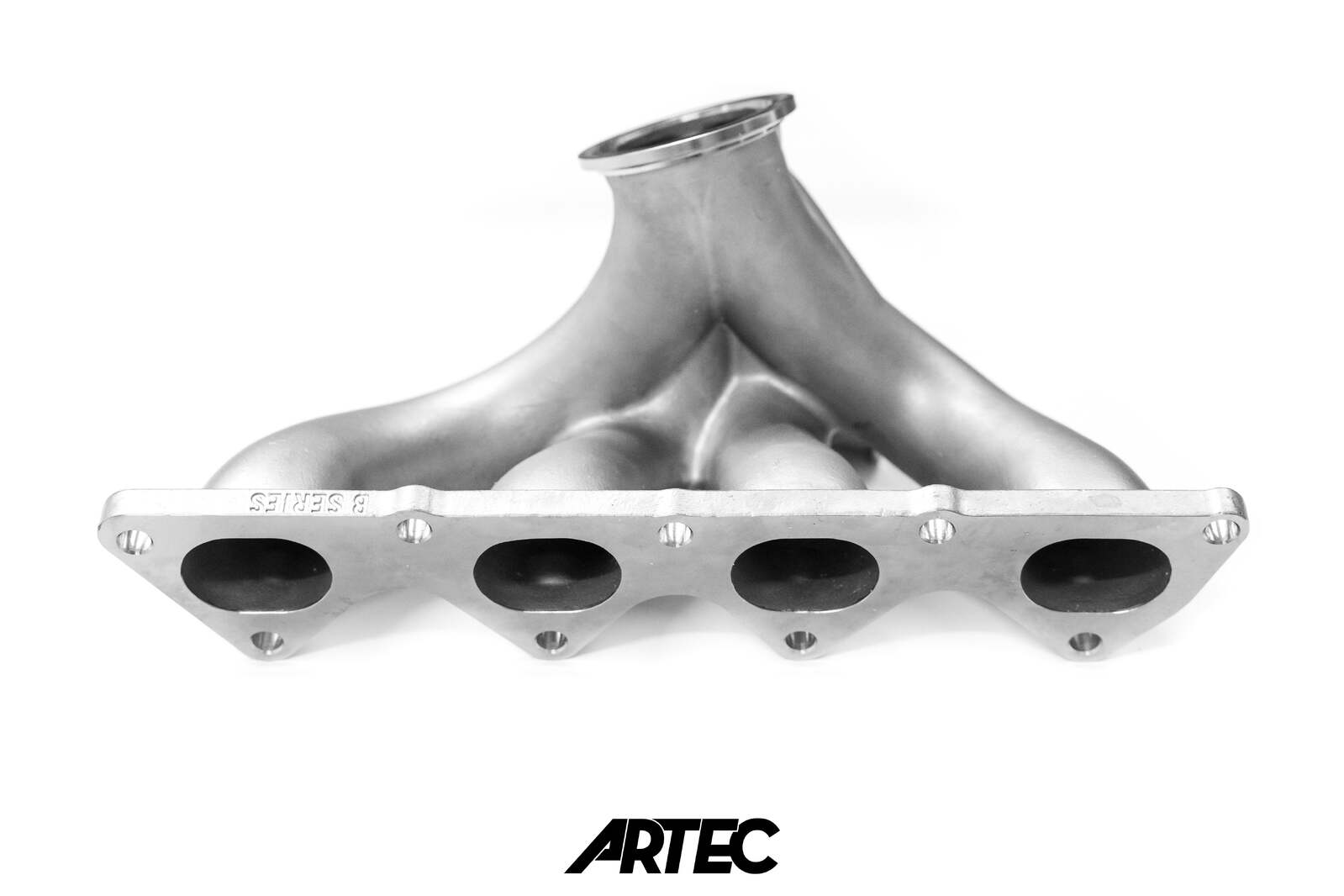

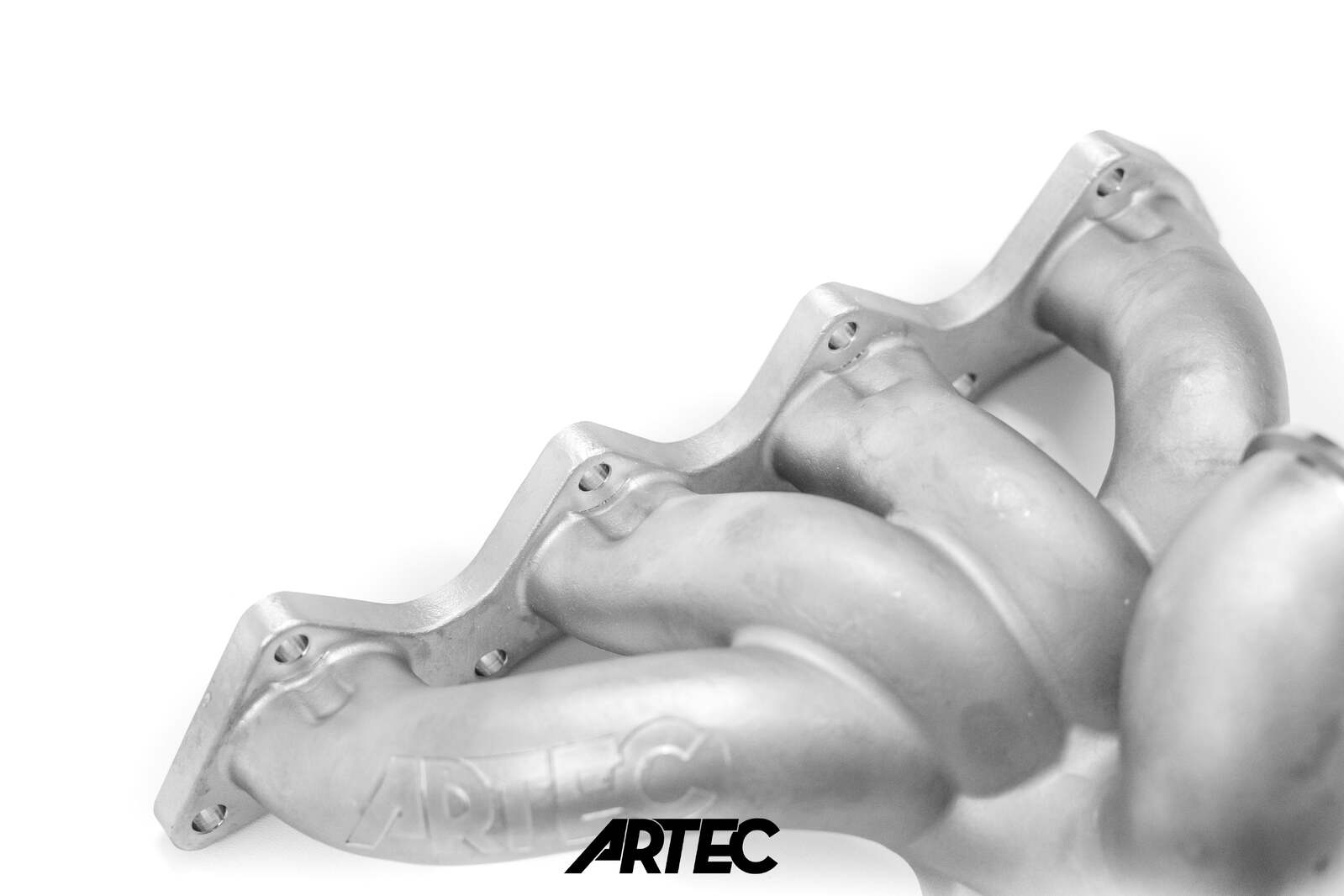

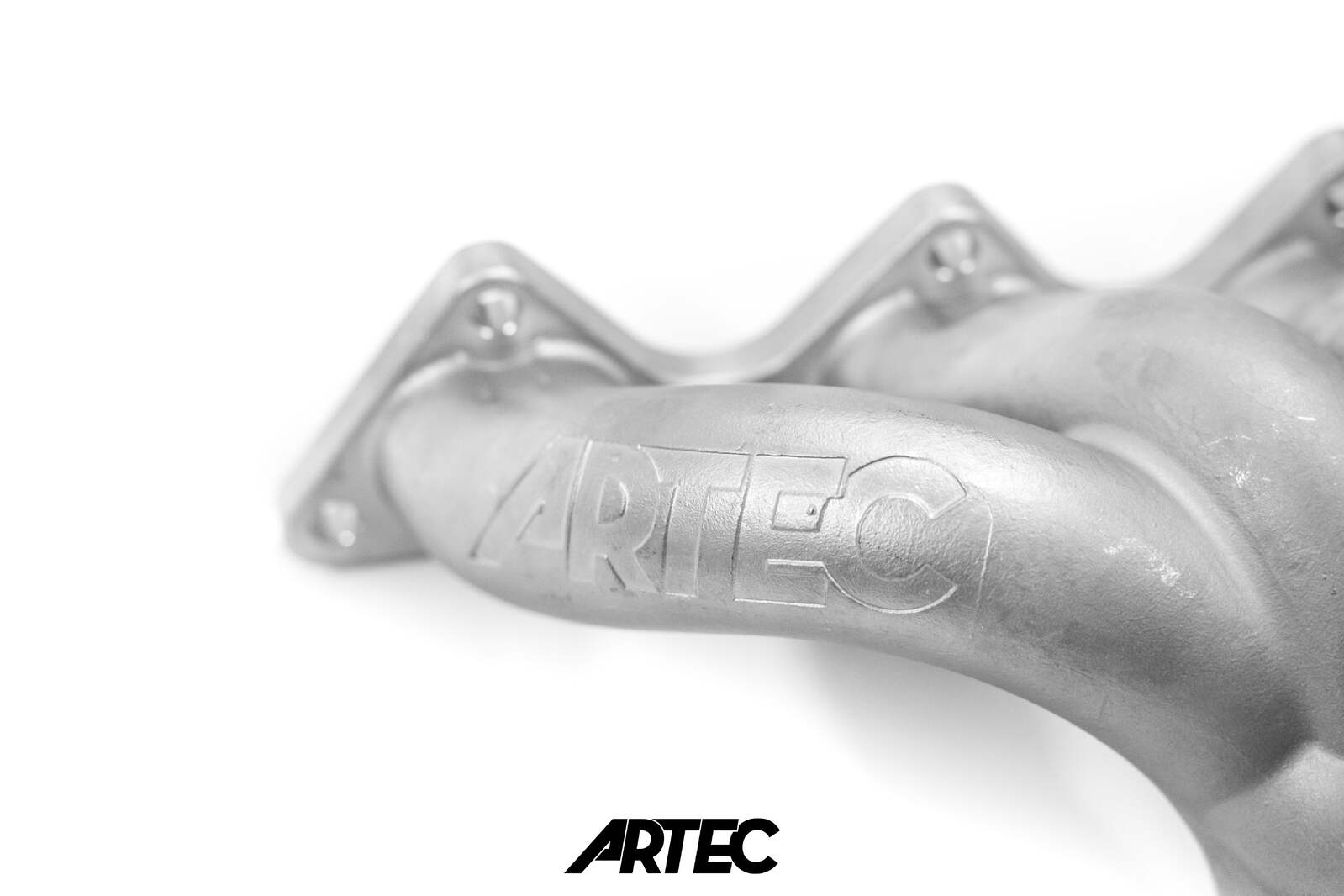

B Series V-Band low mount.
Hey everyone, finally we get to show off our new Honda B-Series V-Band (ac compatible) Turbo manifold.
We picked up a '95 model Del Sol with a B18 to develop our new line of B-Series products. The manifold is designed so you can run AC (with some modifications to the factory condenser and fan) as well as a proper air intake with the air filter.
Later we'll be designing a matching dump/down pipe to make it easy to plumb the wastegate back in, and easily fit that tight exit out of the turbine housing.
This design uses our universal V-Band system and is designed to use standard rotation turbos. So any @garrettmotion G25 through to G35 or @precisionturbo up to a 6870.
We have also designed it around an @turbosmarthq Gen 5 45mm wastegate, BUT the wastegate runner is designed to accept a 50mm if your setup requires it - just cut the 45mm flange off and weld the 50mm flange on.
