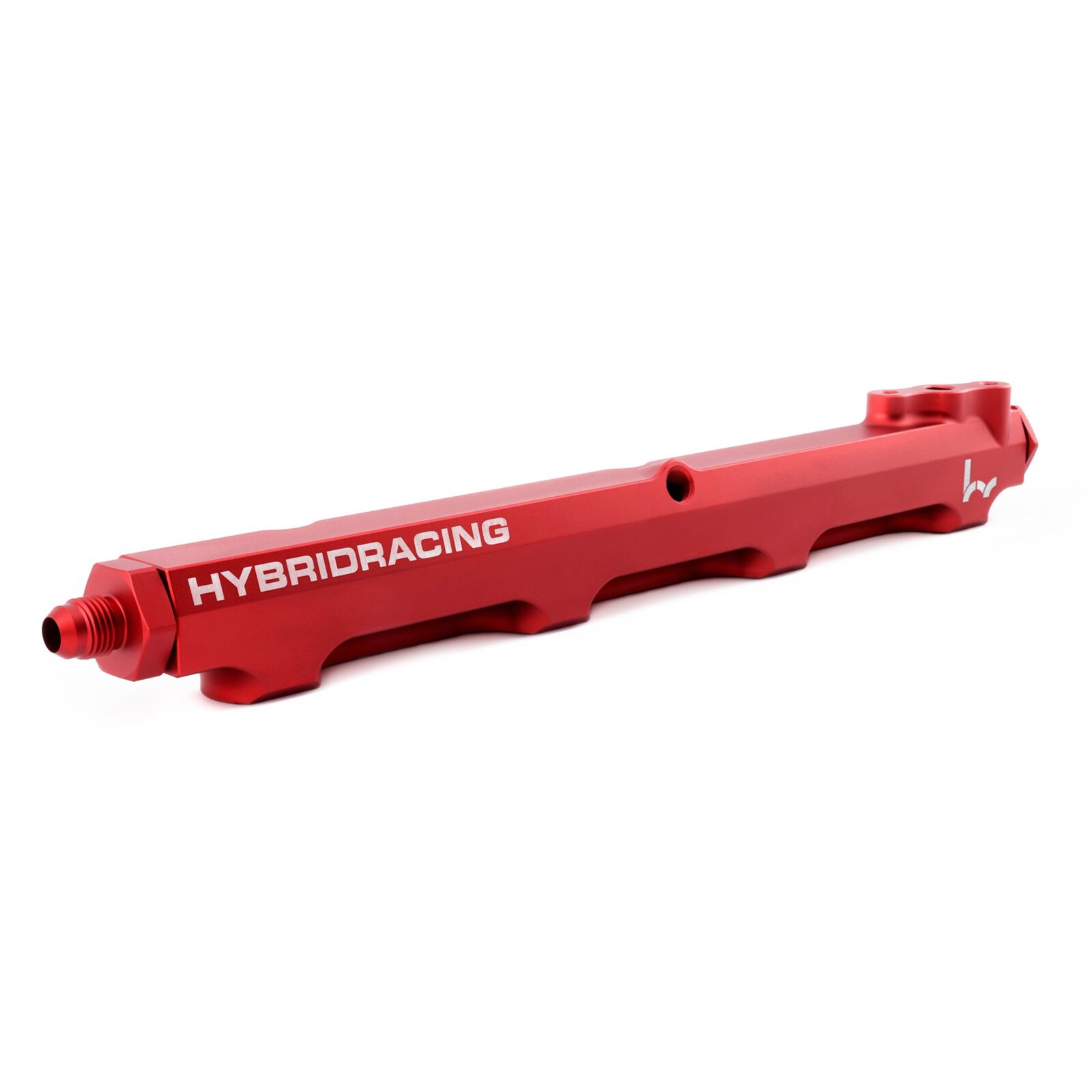

HYBRID RACING HIGH-FLOW FUEL RAIL - B SERIES/UNIVERSAL - DUST RED
Hybrid Racing fuel rails are made from 6061 aluminum with T6 heat treatment and feature our three-step Dust Black anodized finish with a laser-etched logo ensuring that your engine bay looks fresh and your engine stays fed!

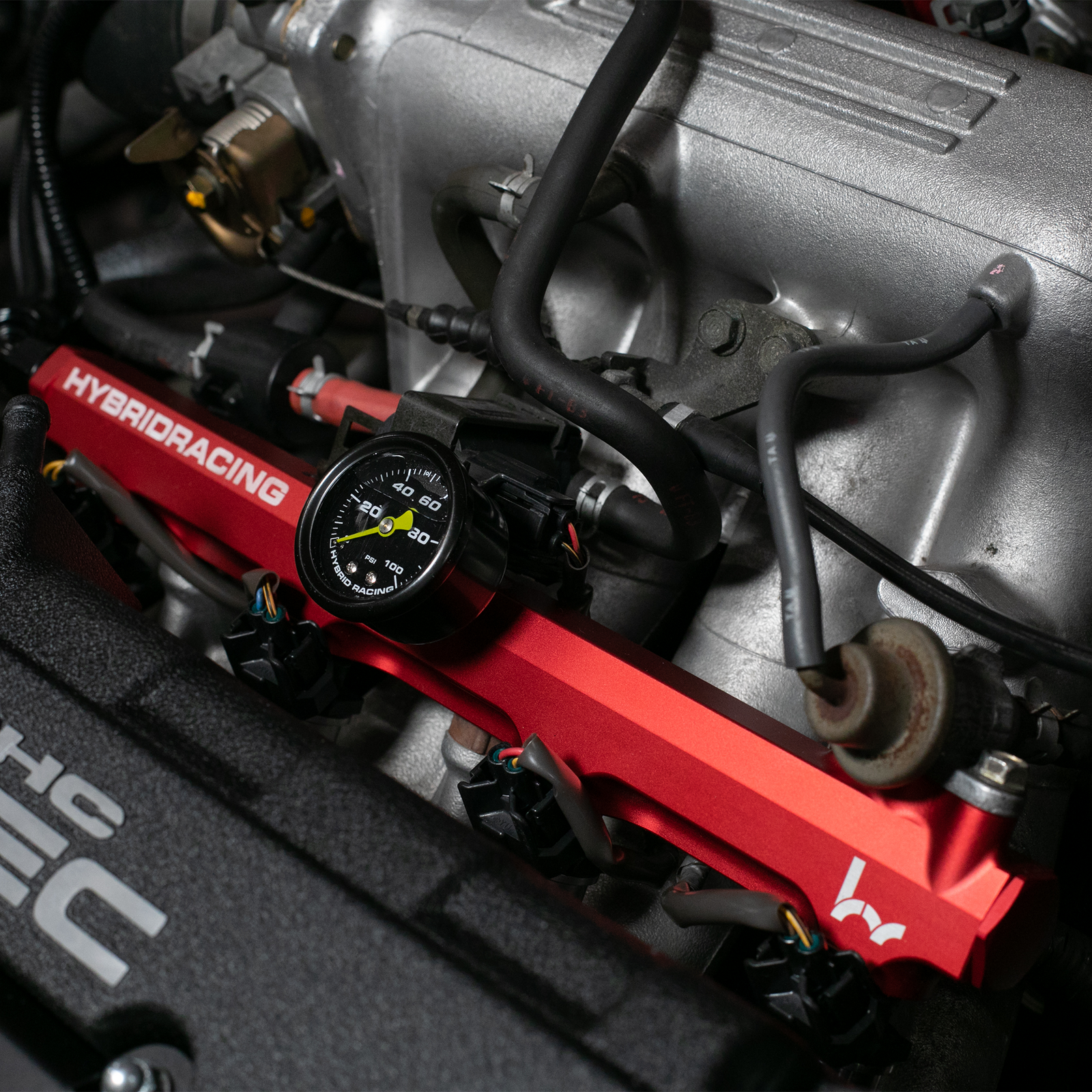

Each rail includes a 1/8" NPT hole that allows you to mount a fuel pressure gauge directly to your fuel rail. This puts the fuel pressure gauge in a spot that's easily visible, so you don't have to poke around in the engine bay just to see if you have fuel pressure. All of the ports can accept a -8 ORB fitting in the inlet(s) and outlet allowing you to run either the OEM B-Series FPR or use the supplied 1/8th NPT plug and use the side -8ORB port.
What intake manifolds is this rail compatible with?
This rail has been shown to mount to the most popular OEM Honda B-Series intake manifolds equipped on the Honda B16 & B18 engines.
Is this fuel rail universal?
Since this fuel rail requires the use of an aftermarket fuel line, there is no specific or direct bolt-on application. It is a universal fuel rail that must use an aftermarket fuel line as it is not compatible with the OEM B-Series fuel line.
We suggest using our fuel line kit with this rail, item HYB-FLK-01-10
Compatible with all fuels. Fuel Pressure Gauge not included.
