JDMYARD HP FUEL SYSTEM KIT HONDA CIVIC TYPE R FK8 FL5

So far, the most cost effective and effecient set of direct-fit fuel system components to give you big power, +68% more fuel flow (compared to factory HPFP pump), ease of install, tuning + plenty of headroom if you plan to upgrade the factory turbocharger and make considerable power on an unopened engine. (*Tested with MHI turbo w/ Flex Fuel)

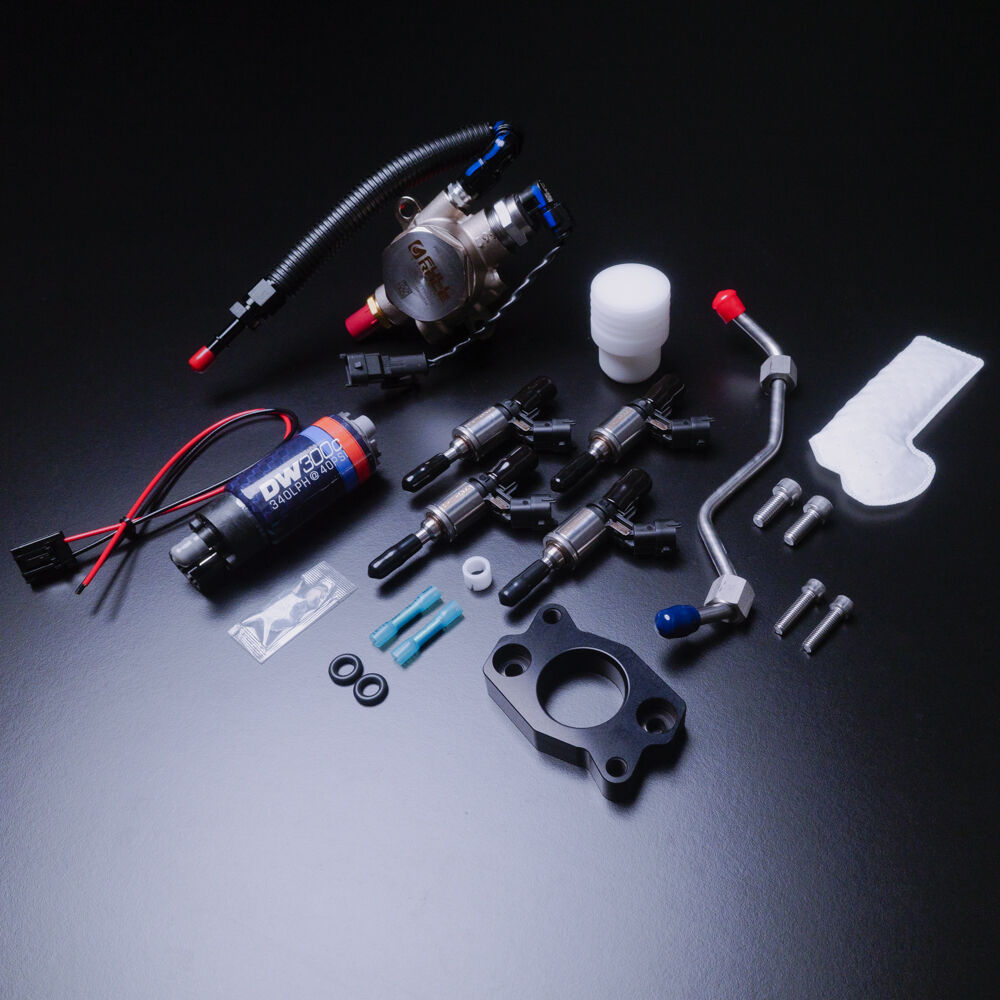

Kit includes:

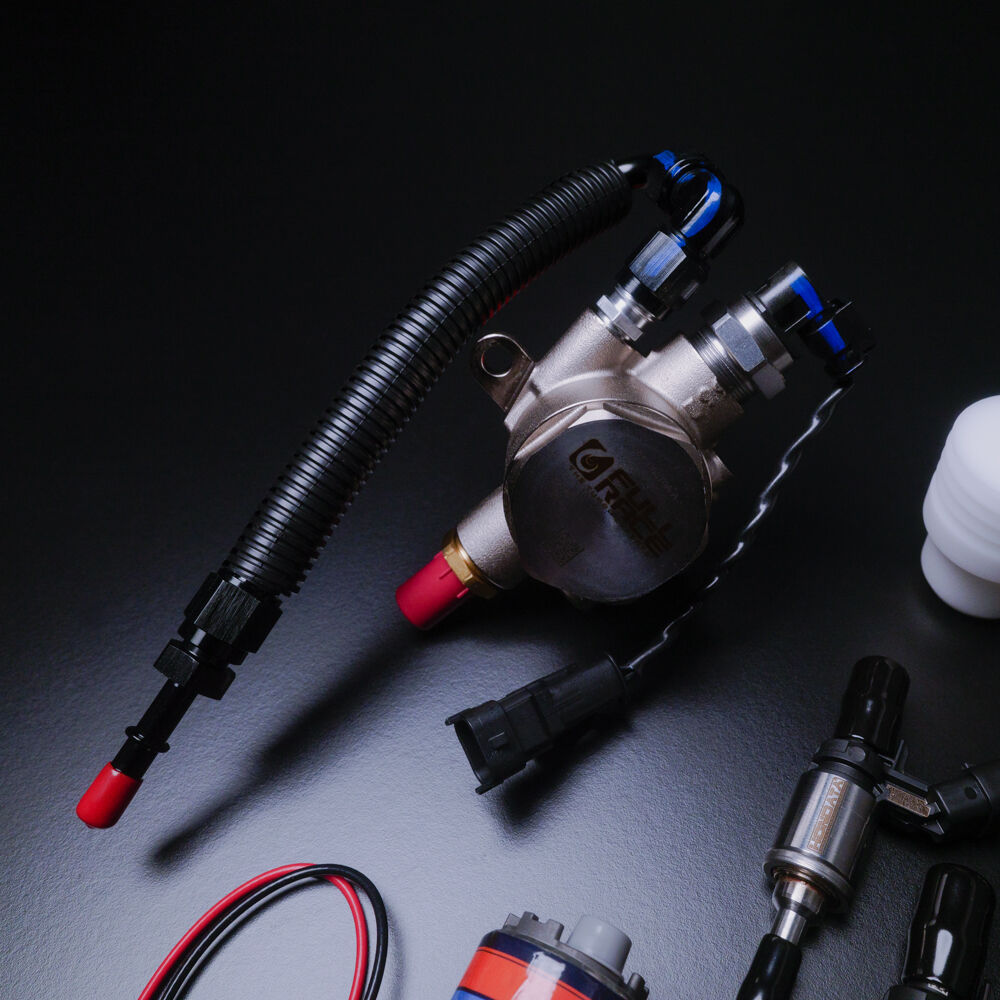

Full Race HPFP

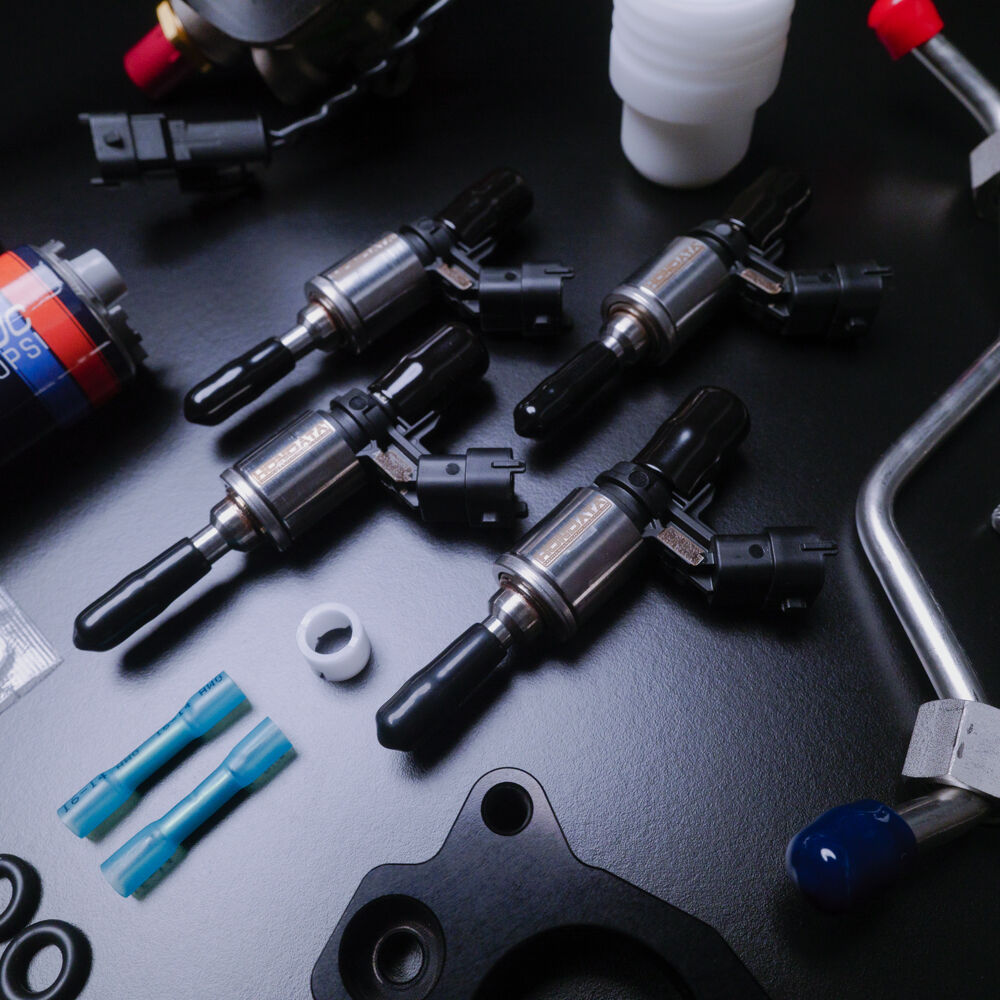

Hondata 1530cc Injectors

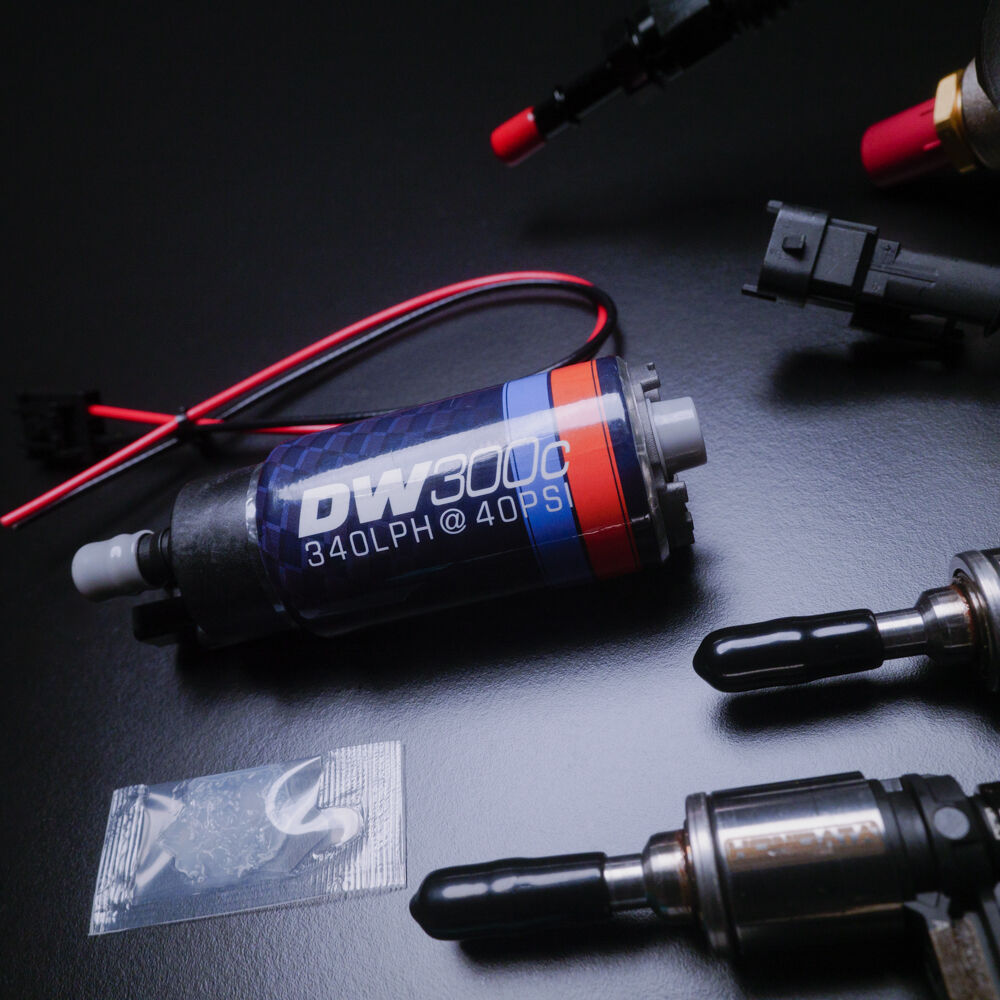

Deatschwerks DW300 340LPH LP In-Tank Fuel Pump (E85 Compatible)

Application List

2015-2016 Honda Civic Type R (FK2)
2017-2021 Honda Civic Type R (FK8)
2023+ Honda Civic Type R (FL5)
2024+ Acura Integra Type S (DE5)

Features & Benefits

Largest Displacement HPFP: The largest capacity high-pressure fuel pump available for any Honda application, offering 68% more fuel flow than the stock pump, without the need for a 5mm camshaft swap.
Unmatched Power Potential: Capable of supporting up to 830 wheel horsepower on gasoline and 700 wheel horsepower on E85, this pump ensures your vehicle reaches its highest performance levels.

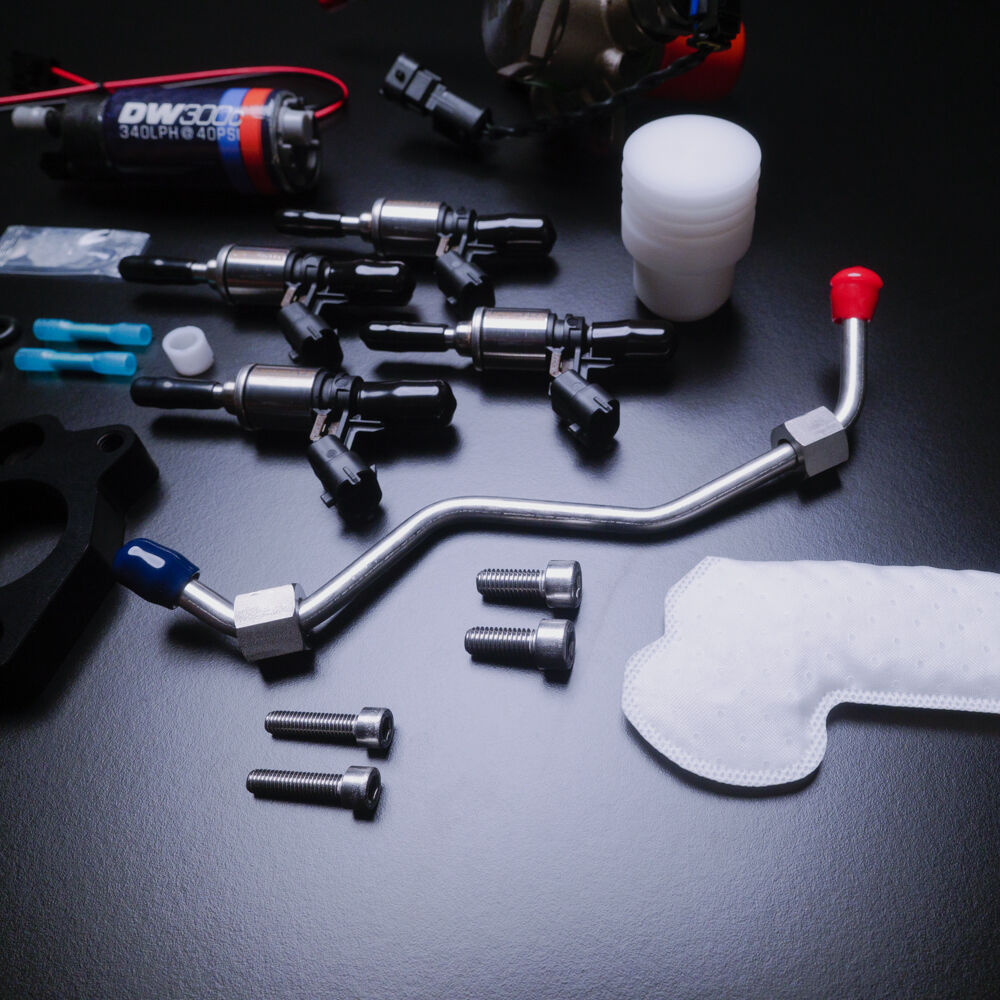

Comprehensive and Easy Installation: The kit includes all necessary components for a hassle-free installation, with no permanent modifications required. The high-pressure tube replaces the OEM line entirely, eliminating the need for drilling.
Integrated Pulse Damping: The pump features an integrated high-pressure pulse damping orifice, ensuring smooth operation and better control over fuel pressure.
Fuel Compatibility: Designed to work seamlessly with both gasoline and E85 fuels.
Hondata Tuning Support: Each unit is laser-marked with a unique Hondata keycode for easy tuning.
Engineered to be the Best: We partnered with an industry leader in fuel pumps, Nostrum High Performance, in the development of this component. For this reason our customers know that they can rely on our fuel pumps to be the best built, best performing on the market.

Specifications (*Based on Full Race Testing)

Fuel Flow: 68% more fuel flow than the stock pump.
Max Operating Pressure: 250 bar (3600 psi).
Max RPM Capability: Validated up to 8400 RPM.
WHP Potential on Gasoline: 830 WHP (based on 7000 RPM power peak).
WHP Potential on E85: 700 WHP (based on 7000 RPM power peak).
Fuel Compatibility: Gasoline & E85

Recommended Tuning Software:

Hondata (using the provided Hondata code)
Motec (FK8 Tuning & Development)

FK8 High Pressure Fuel Pump Options - Stock, Full-Race, Hondata and XDI Pumps with stock and Hondata GDI camshaft lobe (liters per hour) vs RPM

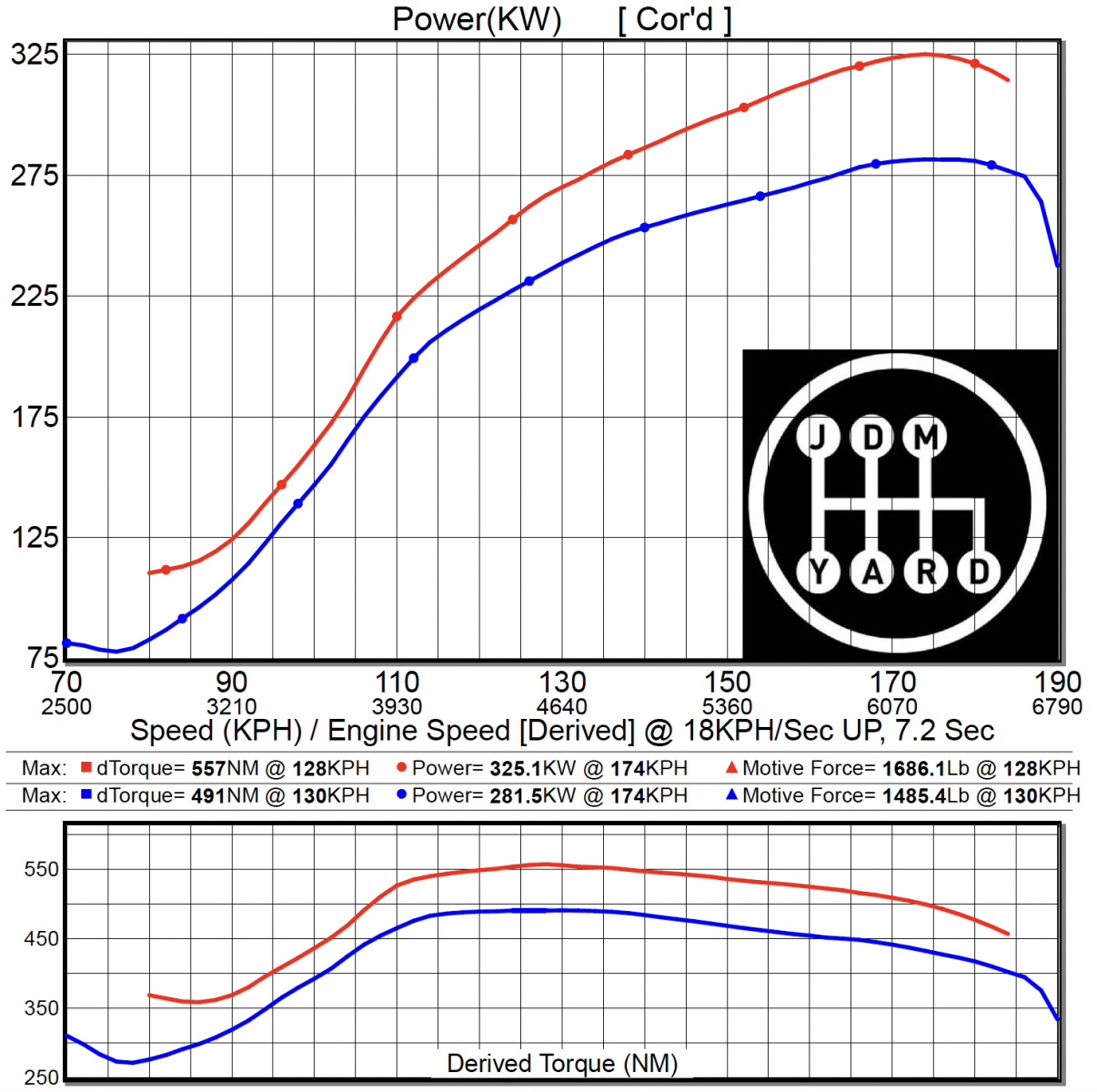

Dynojet Research graph showing the power and torque curves for a Honda Civic Type R with the Full-Race High-Pressure Fuel Pump, illustrating maximum power and torque at various engine RPMs for different setups.

*Horsepower and Torque numbers are approximate and can vary significantly depending on numerous factors including what supporting upgrades are done to the vehicle, ambient temperature, elevation, road surface, tire selection & condition, fuel octane and quality, vehicle weight, and more. The advertised numbers herein are based on optimal conditions and utilizing proper supporting modifications. Your results may vary.

FAQ

Can the Full-Race Civic Type R High-Pressure Fuel Pump be used with aftermarket camshafts that have higher lift fuel pump lobes?

The Full-Race high-pressure fuel pump is intended for use with an OEM-sized 4mm HPFP camshaft lobe. We do not recommend using this HPFP with an oversized 5mm aftermarket camshaft lobe, due to issues with fuel pressure control that may result.

What is the benefit of a higher max operating pressure?

The higher operating pressure of the HPFP allows you to run the fuel injector at a higher pressure, sometimes higher than stock commanded pressure. This allows more injector flow (mass flow) by running the same injector at a higher pressure, like 240 bar (3500psi) rather than 200 bar (2900psi). Increased pressure at the injector improves spray quality and penetration, especially as boost pressure increases. In highly boosted DI engines it's all about injector capacity and combustion quality (spray quality).

(JDMYRD-HP-FS)

SKU	JDMYRD-HP-FS
Brand	JDMYARD
Shipping Weight	3.6000kg
Shipping Width	0.280m
Shipping Height	0.270m
Shipping Length	0.450m
Shipping Cubic	0.034020000m3
