- Walbro 460/525lph compatible
- Dual pump option avail 20-0797-00
AU $430.00 GST incl
*A $6 monthly account fee applies
(only payable if a balance is owing) See full Ts & Cs
DUAL PUMP ADD-ON
Part numbers 20-0796-00 and 20-0797-00 are add-ons to the fuel pump hanger listed above. NOTE: Part numbers 20-0790-00 or 20-0792-00 must be purchased to use these add-ons.

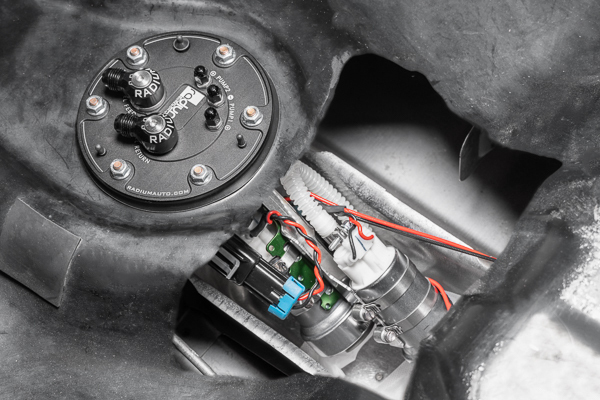

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult. Furthermore, it is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.
The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pump merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.
Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.
P/N: 20-0796-00 can be used with the AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector.
P/N: 20-0797-00 can be used with the Walbro 39/50 DCSS pumps including F90000267, F90000274 or F90000285 pumps.
-Gasoline, Methanol, and E85 Compliant
-Compatible with Various Pumps
-Included Fuel Pump Filter Sock
-Plug and Play Installation
-Bolt-On Stainless Steel Pump Bracket
-Polished Installation Tool

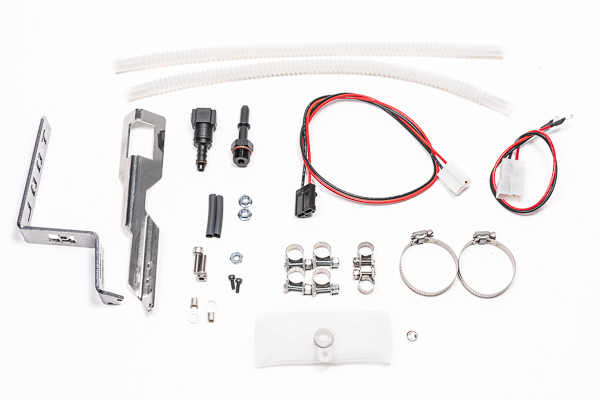

Radium P/N: 20-0796-00 shown above. Radium P/N: 20-0797-00 shown blow.
