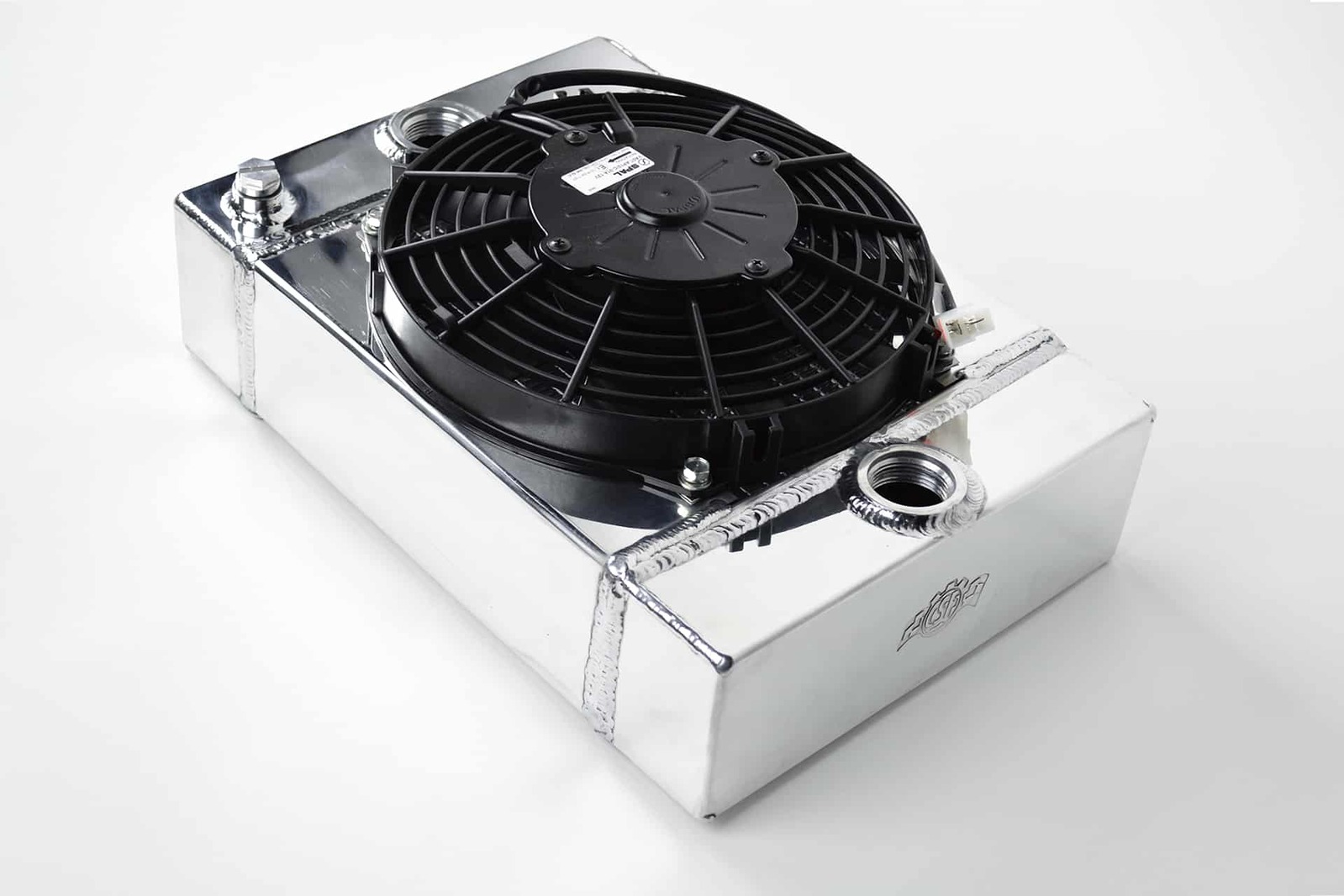

CSF RACING 2-ROW 3.5" KING COOLER DRAG RADIATOR W/9" SPAL FAN - UNIVERSAL
After more than 9 months of R&D, and input from some of the best import drag race builders in N. America, CSF has brought to the sport compact market the most advanced drag race cooling system ever developed. Introducing the KING Cooler. Since the launch of CSF’s industry-leading line of tuck radiators exclusively for Rywire, the calls have been coming into CSF to produce a similar universal item for the import drag race market (SFWD). After working with industry leaders such as Sheepey Built, Whitfield Manufacturing, and JRP Canada, CSF was able to use its industry-leading technology to come up with a universal solution that is now in stock and readily available through CSF’s distribution and dealer network around the globe.
CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology.
Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in a shape of a "B." These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded.
The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes "“ producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow."
High Efficiency multi-louvered fins
CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
DESIGN & ENGINEERING
CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows us to be on the cutting edge of heat transfer innovation.
ADVANCED ENDTANK DESIGNS
CSF offers three all-aluminum end-tank designs to match any style and performance need.
Each CSF high-quality radiator is completed with an industry-leading 1 hour, hand-polished "Show-Stopperâ„¢" Mirror Finish. Our hand polishing tools and techniques in our new polishing center located at the end of the production line ensure that every CSF cooling system looks just as good as it performs.
- 3.5-inch thick 2-row core with CSF’s exclusive B-tube technology
- Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
- Threaded bung size: 1 5/16” x 12G

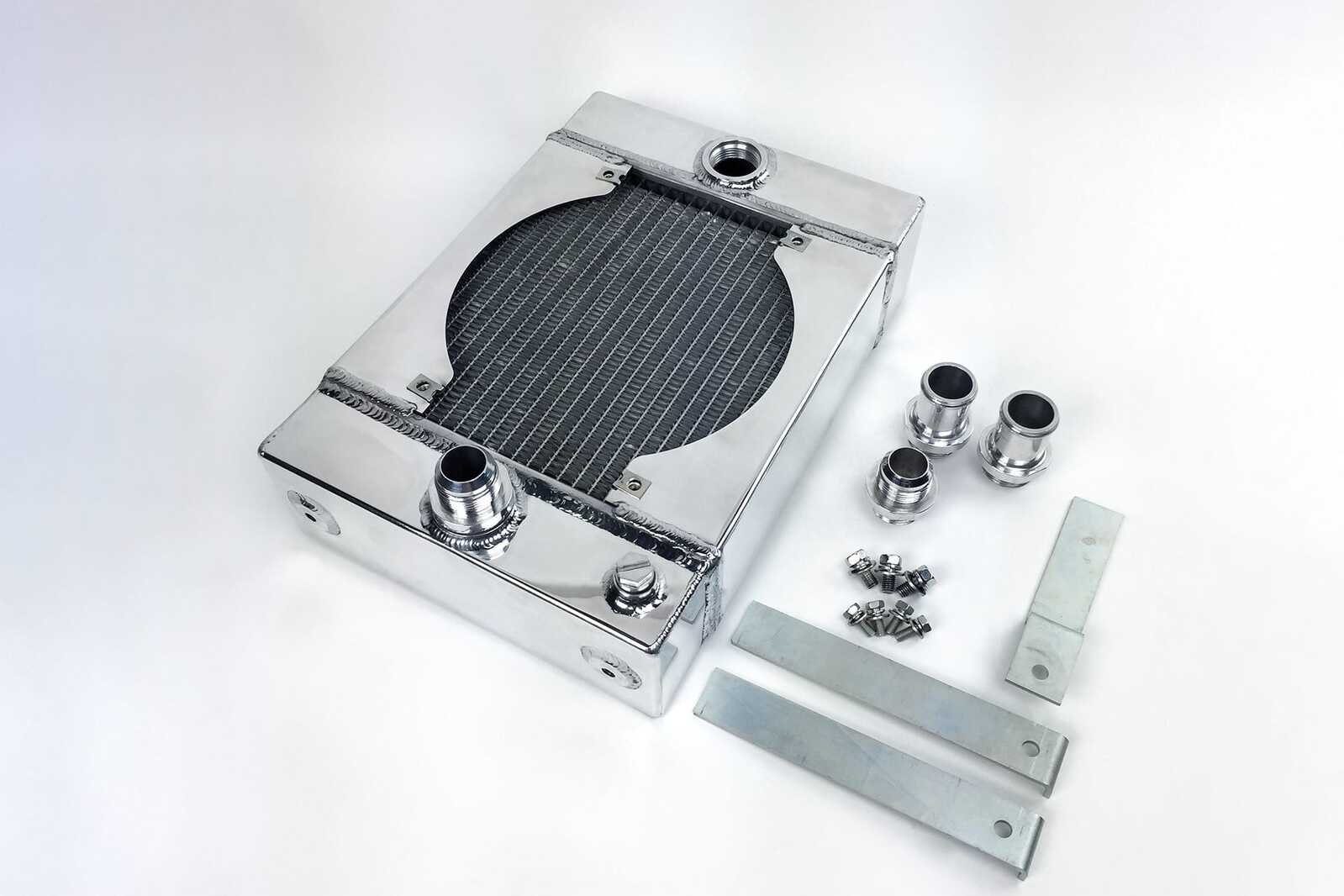

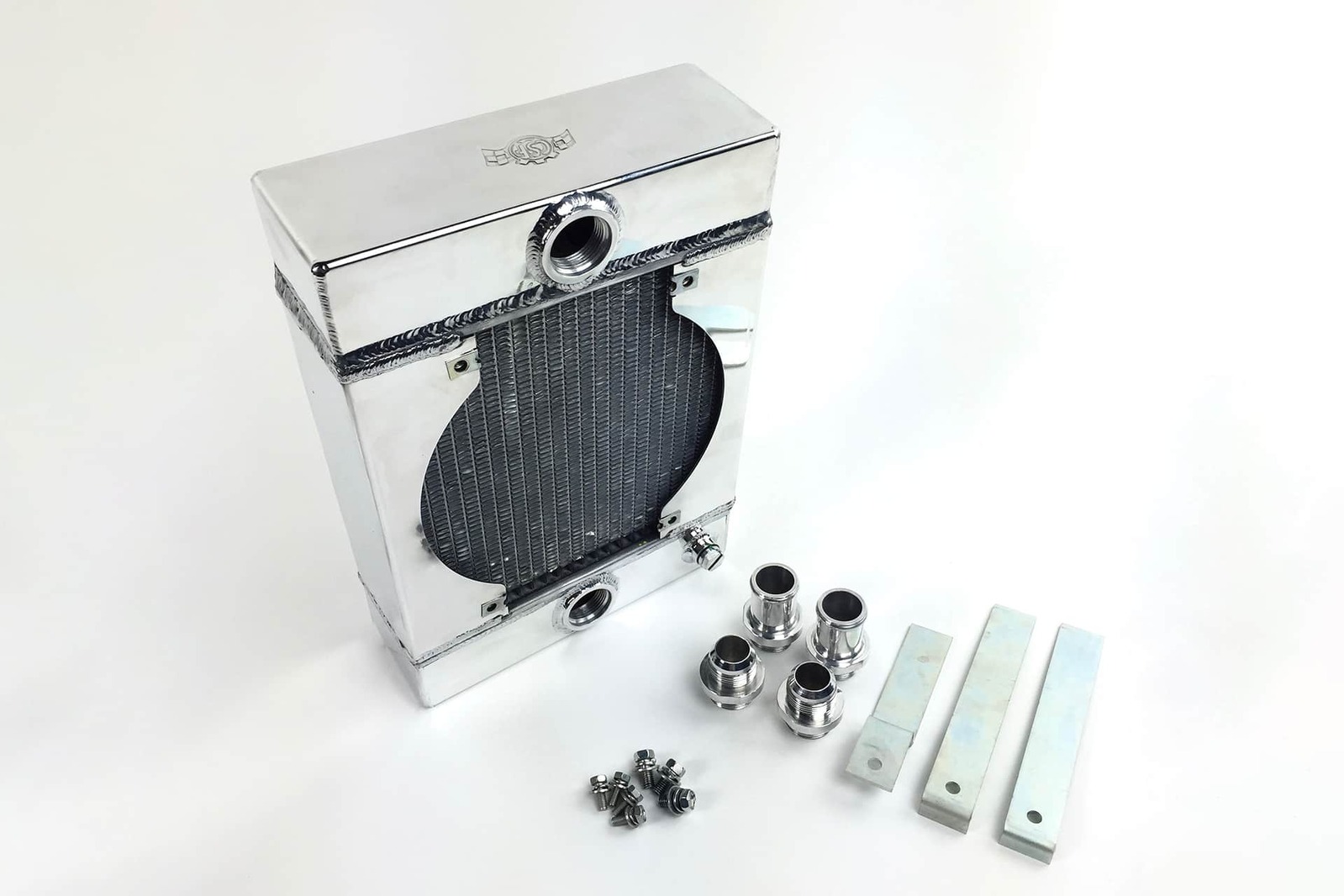

- Universal mounting brackets included
- Includes 9-inch SPAL fan
- 1-hour hand polished mirror-finish
- Overall dimensions: 14.5H × 10.0L × 3.6W (5.65W with a fan installed)
